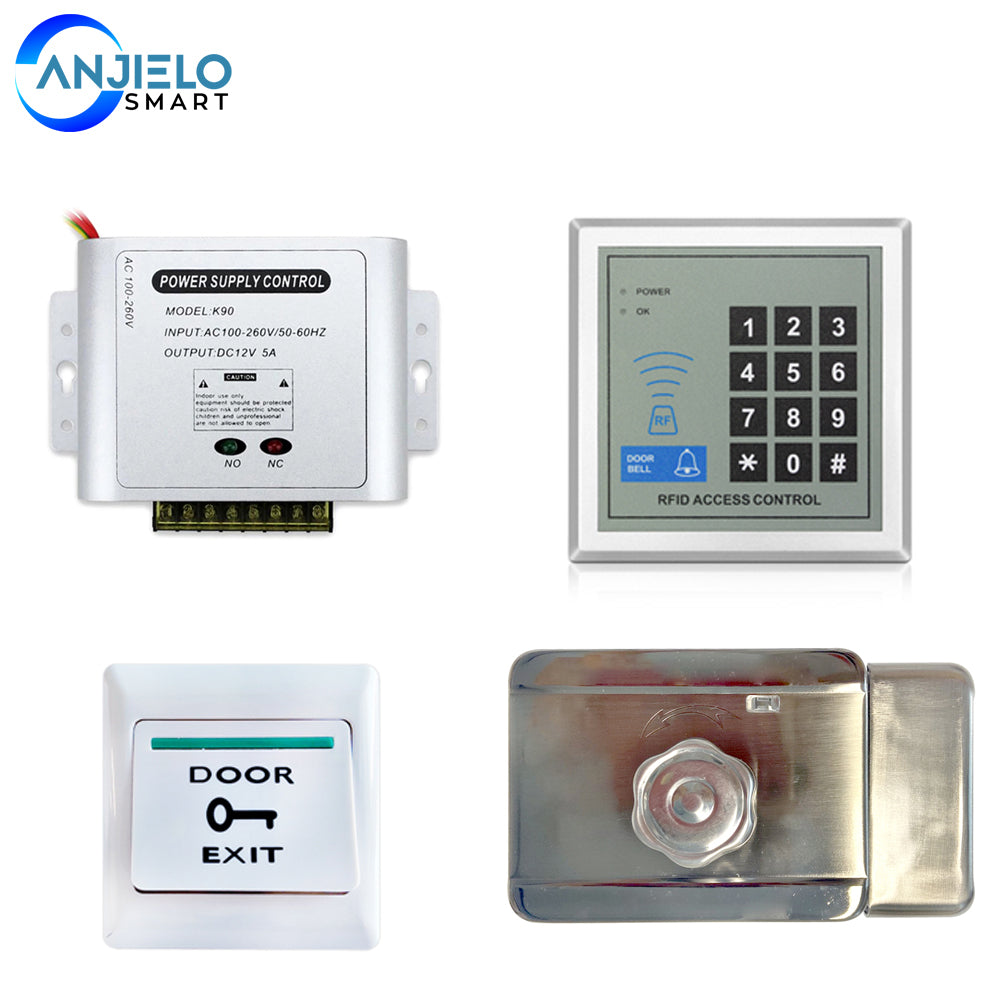

Digital Password Access Control RFID Card Access Control System Kit Power Adapter Warehouse Apartments Electronic Door Lock
Classical Appearance with useful function
Professional Design and Quality for Home and Office High Security
Working voltage: DC 12V
RFID Card Capacity:500 cards, a "Personal PIN" goes alone with each card
Lock relay time:3 seconds
The card read distance:5-50 mm
RF card type: EM or EM-compatible card
Working temperature: -10~70 C
Dimension: 11.8cm*11.8cm*2.3cm( approx)
Color: as the picture show
Please make sure that your address is correct before payment.
If you want to purchase more, please contact us.
Please don't give us a 1-3 low score on shipping, as we shipped the item quickly but overseas shipping depends on many factors, such as logistics, weather, country policies, and any problems, please contact us first.
Please contact us before leaving any negative or neutral feedback or opening disputes, we will work with you to solve any problems.
All emails will be replied to within 1 day, If you don't receive our reply, please kindly re-sent your email, and we will reply asap.
During the closing process, the locking tongue does not touch the lock, no collision, and no noise.
Double-headed lock, double protection inside and outside, can be opened with a mechanical key, anti-tailing.
Automatic sound and light prompt for the working state of the lock.
Incorrectly unlocking, or no one enters or exits after unlocking, the door will automatically lock after 5-8 seconds to ensure safety.
In case of power failure or circuit failure, the key or handle can be used for emergency unlocking.
It has positive and negative control unlocking functions and building intercom, access control, and system matching.
There is an indicator light on the lock head, which can be used as lighting for opening the door with a key at night while prompting the working condition of the lock.
Synchronous motor, metal gear, more rugged and durable. Equipped with a mounting kit for easy installation. Manually unlock support.
An external remote control device can be connected, which can be selected by the user and can be opened by wireless remote control.
Can be adapted to the left and right doors (rotate 180 degrees lock). High security and high security.
Suitable for homes, offices, schools, hotels, factories, warehouses, etc.
Condition: Brand New
Material: Zinc Alloy
Input voltage: DC 12V or 24V adjustable (factory default is 12V, if you use 24V, you need to debug the terminal of the board)
Static current: <25mA
Operating current: <350mA
Unlocking time: ≤1s
Operating temperature: -40℃ ~ 70 ℃
Operating humidity: <95%
Package Weight: Approx.1270g/44.8oz
Packing Size: Approx.17.5 * 10.5 * 8cm/6.9 * 4.1 * 3.1in
Product Detailed Description
Access Control Security System
the electronic lock is NC, which means this lock is open without tension and locked with power. When pressing Unlock key, the lock is open. (pls must see this before ordering.)
【Power Supply Control】
* input voltage is AC 100-260V, and the frequency is 50-60HZ * high low pressure,1500VAC/1 minutes do not break * adjustable output voltage DC11.5V-13.5V(for wiring distance, to make the lock does not work, then you can take the high voltage) * output current ripple voltage:5A; upp=50mV * Control is a group of active signal input(DC5-24V) and internal isolation, and can simultaneously connect multiple access control controllers and building intercom
Anode Lock: Unlocks when power is off.
Cathode Lock: Unlocks when powered.
(Reminder: The installation of the cathode lock must be equipped with a UPS power supply.)
Power off, connect to NC and COM
Power on, connect NO and COM (the power-on time should be adjusted to 0)
