Home Video Intercom System 700TVL RFID Access Outdoor Camera Video Doorphone Doorbell IR Night Vision for 2/3/4/6 Apartments
700TVL IR Night Vision Outdoor Camera Door Bell,
Support RFID Card unlock, not including indoor monitor

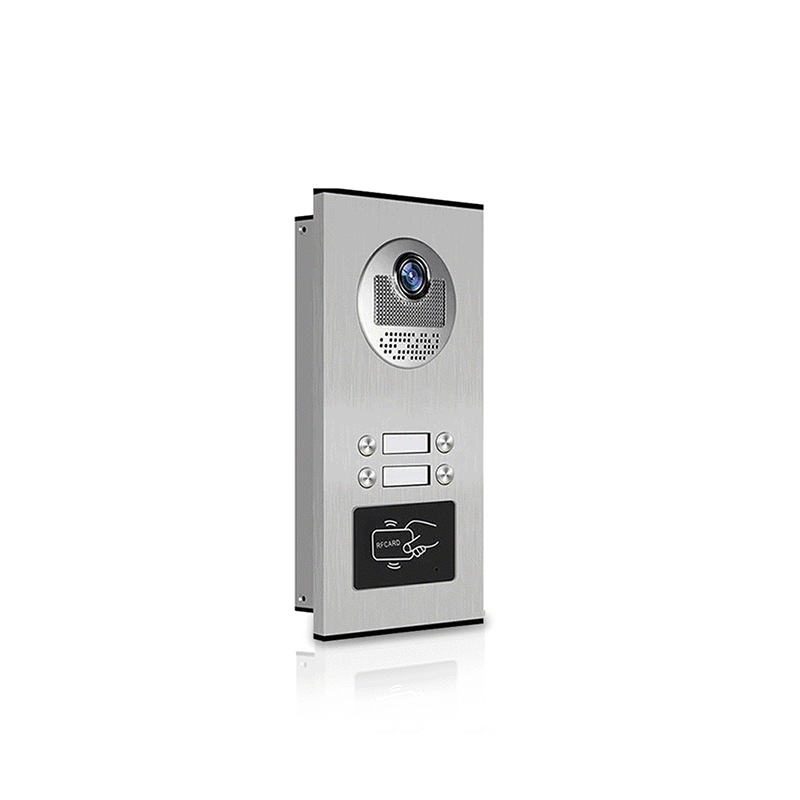

The outdoor camera has 2，3，4，6buttons, each button can control a monitor independently. This is a high quality device with reliable system performance, perfect function, and flexible configuration. The ourdoor camera build-in a RFID reader, with this function, you can open your door with the RFID key card from outside. Item support 500 user cards.Can be used for multi apartments, especially suitable for low-rise buildings,don't need to connect to internet!
Room Number Slot
Power from indoor monitor
Built-in 5 IR Lights for nigjt vision
Aluminum alloy shell
RFID Card unlocking
1. 700TVL IR Night Vision. The outdoor camera build-in 5 infrared LED light.
With this function, you can see outside no matter day or night. Keep your home more safer.

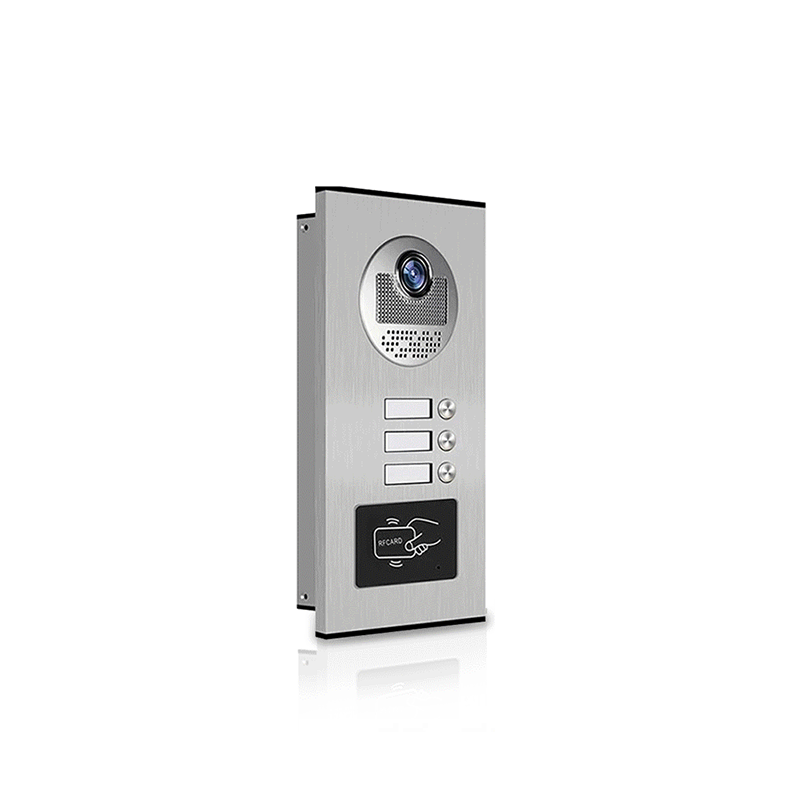

2. There are has 3 call button on the camera, each one can connect to one monitor independently.
3. Support Two-way radio function
When a visitor ring the bell, the monitor will be activated and show the image outside. Press the answer button, then you can talk to outside, press the answer button again to turn it off.
4. Can work with DC12V electric lock. Open the door with the unlock button on indoor monitor
Working with the electirc lock, make your home more securty. ( both of the indoor monitor and locks not including in the package, if you want them, please contact us)
5. The ourdoor camera build-in a RFID reader, with this function, you can open your door with the RFID key card from outside. Item support 500 user cards.
• Function: video intercom, Night vision, HD camera, RFID unlocking
• Camera Resolution: 700TVL
• Night Vision: Up to 2 meters
• Working Temperature: -35 °C ~ +55 °C
• View angle: 85° to 90°
• User Capacity: 500 user cards
• Most long-distance: 100 meters
• Installation: Embedded mounted
• Material: ABS Plastic, Aluminum wire drawing
• Wire Syste: 4 Wire system

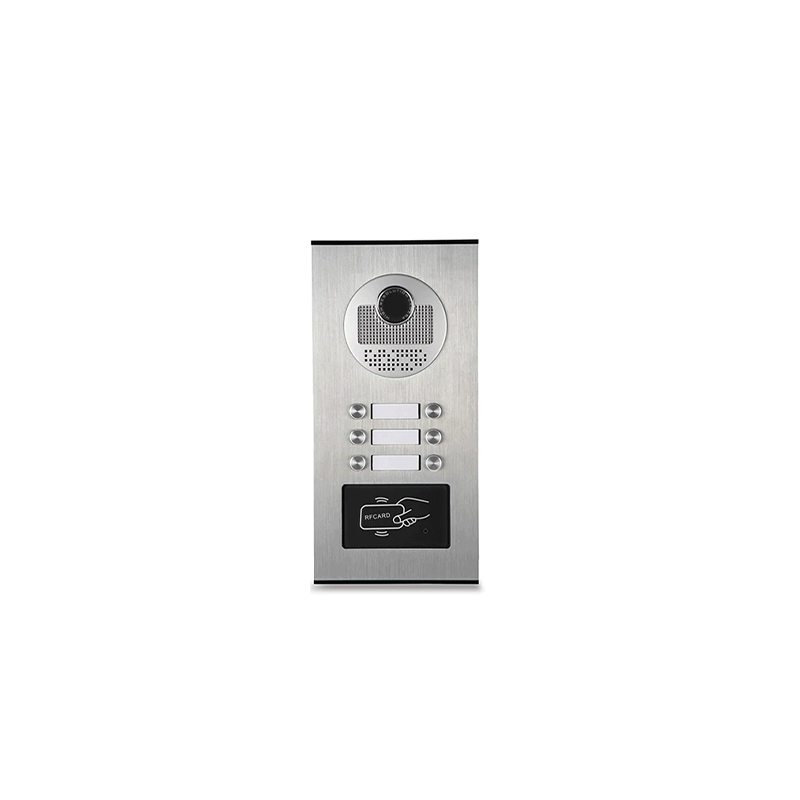

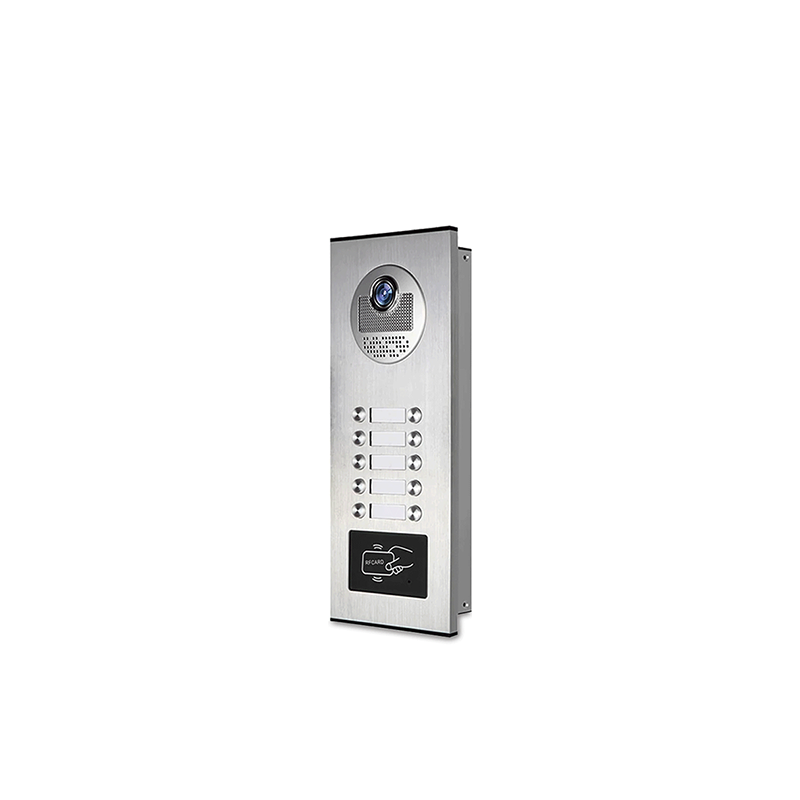

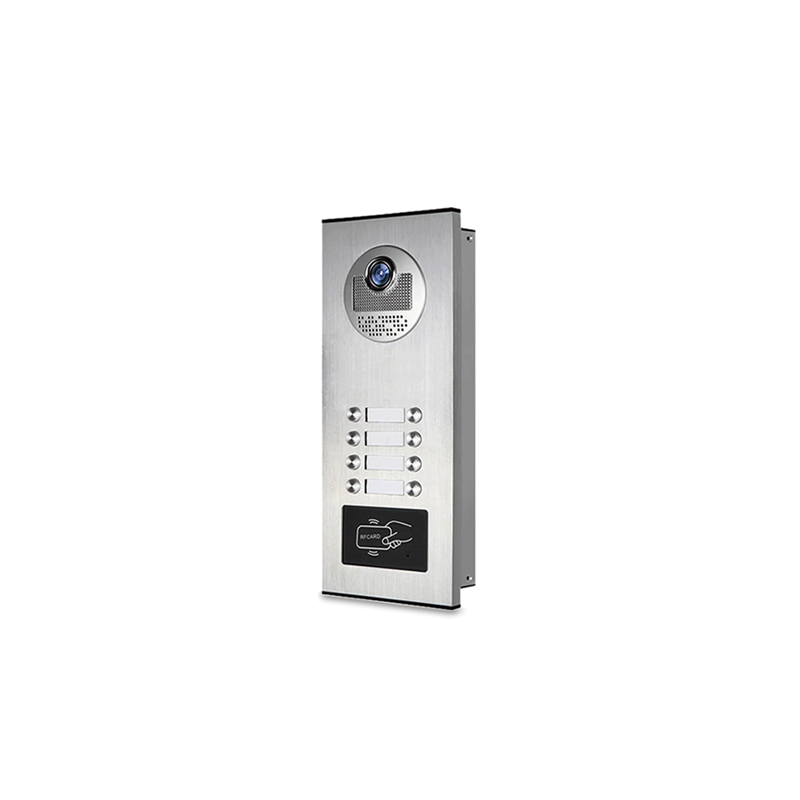

• We have the camera with 2 / 3 / 4 / 6buttions too.
• 2-6 key dimension: 265mm * 128mm * 48mm
• mounting dimension: 245mm * 117mm * 35mm
It is a 4-wire system, use 4-core cable to connect the camera to monitor.
(Please note the locks, indoor unit at below photo is not included, if you need, please feel free to contact us）
Different distance useing different diameter cable, please check the following form to choose corresponding cable.
This cameras can only work with any of the monitor as the below picture. We can not guarantee if your own monitor will work with our camera. If you already have such monitor as the picture or want to add extra camera, please feel free to contact us before buying. Thank you!
