7-inch TFT Screen Wired Video Intercom System RFID Access Entry Camera Doorbell 2 Monitors for Multi- Apartments/Home Security

7-inch TFT Screen Wired Video Intercom System RFID Access Entry Camera Doorbell 2 Monitors for Multi- Apartments/Home Security

$172.69
$256.65 $172.69
Sale Sold out
Shipping calculated at checkout.
color

Very Important:

We will send your order with 2 or 3 different packages if you chose to ship with AliExpress Standard Shipping. If you chose the DHL, please tell us what's the value you want us to declare on the invoice. This price does not include any custom fee or tax. It's better if you can contact your customs office before ordering it. Thank you a lot!

7-inch Video Door Phone Intercom System

for 2 / 3   Apartments RFID Outdoor Camera / 7inch Color Monitors
Product Details：
With 4 wires system connection. Using a 4-cores cable to connect the camera and monitor.
The max distance is up to 100 meters. Different distances, use different diameter cables, please check the following form to choose the correct cable. ( We will send 5 meters cable to you to test, for the longer cable, need to buy by yourself when installing)

Multiple ringtones - free switch

The 25 chord ringtones can be switched freely, elegantly, and fair-sounding. Both of the ringtones and volume can be adjustable, can meet the original needs of your time. Don't need to worry about can't hear a voice or hearing it too loud anymore.

Handsfree Dual-way Intercom and Indoor Monitoring

When a visitor ring the bell, the monitor will be activated and show the image outside. Press the answer button, then you can talk outside, press the answer button again to turn it off. If you do not press the button after the conversation is finished or if no one answers the call, the monitor will turn off automatically after the 60s.

 IR Night Vision
The outdoor camera build in 4 IR LED lights. With this function, you can see outside no matter day or night. Keep your home safer.

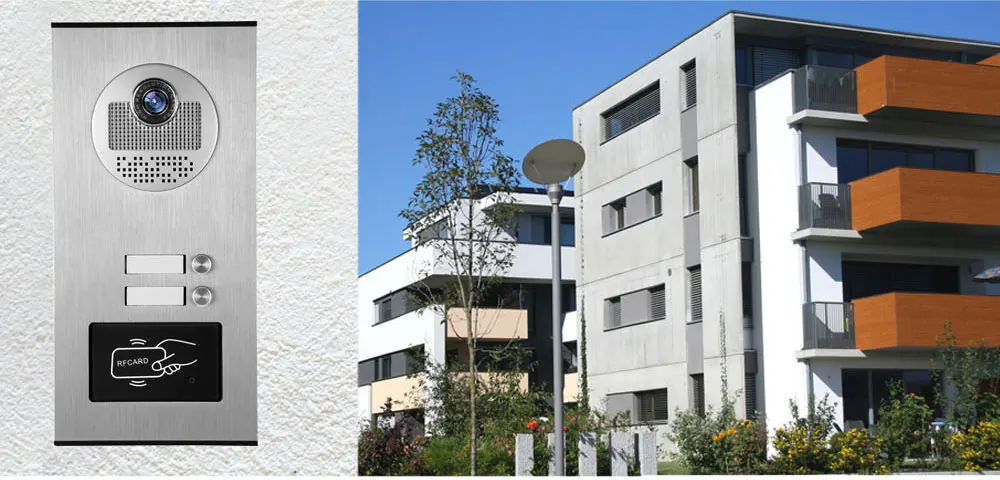

Very suitable for multi-apartment/ families
Like as below, there are 2 call buttons on the outdoor camera, each call button can only connect and talk with one indoor monitor screen.

We have the camera with 3 / 4 / 6 / 8 / 10 / 12 buttons too.

1.2-6 key dimension: 265mm*128mm*48mm
2.mounting dimension: 245mm*117mm*35mm
3.8-12key dimension: 331mm*128mm*48mm
4.mounting dimension: 310mm*117mm*35mm

One key to unlock
This video intercom can connect to the electric lock. You can open the door both with the indoor monitor and outdoor camera. Very convenient!
( note: The lock is not included in the package, need to buy extra)You can press the unlock button on the monitor to open the door from inside.



The outdoor camera build-in an RFID reader, with this function, you can open your door with the RFID key card from outside. Item support 500 user cards.





Technical Parameters：

Outdoor Camera
Camera Resolution

700TVL

Night Vision

Up to 2 meters

Working Temperature

-35 °C ~ +55 °C

View angle

85 to 92°

User Capacity

500 user cards

Most long-distance

100 meters

Installation

Surface-mounted

Material

ABS Plastic, Aluminum wire drawing

Wire System

4 Wire system

Model

XSL-530

Indoor Monitor

Screen

7" color TFT-LCD

Effective Pixels

800 x 480

Wiring

4-wire pin end

Room to Room Intercom

Yes

Adapter Input

AC100 - 240V 50-60HZ

Adapter Output

DC 15V 1500mA

Case

ABS Plastic

Working Temperature

-35 °C ~ 55 °C

Installation

Wall-mounted

Dimension

240mm(L) x 150mm(W) x 23mm(H)

Function

Intercom, monitor, unlock the door

Model

XSL-V70F

Wiring diagram：

( The NO type lock can be connected to the camera directly. But the magnetic lock and bolt lock need connect to an extra DC12V power supply. Both of the locks, power supply, exit button are not included in this package. If you need it, please contact us.)

 Wiring diagram2：



Very Important: Please leave us a message about which type of power plug you want, if you do not leave us any message, we will send EU type by default.



Q: Are you a real manufacturer/factory?
A: Yes, our company specializes in producing smart home smart security real manufacturer/factory.

Q: Are you able to provide OEM&ODM service?
A: Yes, we are able to provide OEM&ODM service and to provide professional advices to both product design&marketing and business planning.

Q: How to place an order if I want to buy some product from you?
A: You can place an order directly on our website, or contact us directly for offline purchase (customized and ready to ship products), after you confirm the products you want to buy from us, I will send you a proforma invoice or contract, or you send us a contract.

Q: How to delivery goods to me?
A: We provide delivery by airplane, by train and by ship.

Q: What's your delivery time?
A: Negotiable

Q: What terms of payment do you offer?
A: Negotiable

Q: Hello, I don't know the unlock code of the device, it's six numbers.111111, 222222, 123456 are not correct, please let me know.

Q:Does anyone know the default pass to open the door using Tuya?
A:Hello, the initial password is 888888.

Q: Can connect to 5G wifi？
A:NO，ONLY 2.4G wifi can be used.

Q：I'm not capable. I don't activate the wifi on the monitor
A: Hello, in this case, the wifi of the screen is not successfully connected, you need to contact the seller or technical staff ,Add whatsapp:+8615913473606 it is best to shoot a video in advance, so that we can quickly tell you the solution

Q：What kind of cable to use to connect the screen to the phone?
A:Hello, you can use the cable from our store, https://anjielo.myshopify.com/admin/products/6064868556959
which is better, or CAT5 OR CAT6, but there will be requirements for length and quality, please contact the seller for details

Q:How to connect to Tuya?
Product Support ：YouTube:www.youtube.com/@anjielosmart

TikTok: Search "Anjielo Smart" on TikTok  Email :  yuyunzhu@anjielo.com; sales@anjielo.com，Or add whatsapp:+8617336198736



Q:During the process of adding a device, it shows that there is no permission to add a device, what should I do?
A: Hello, first click on the network on the screen, select the DEFAULT option, restart the screen to add the device again, if you still cannot add the device, please contact the seller

Q:The doorbell keeps ringing
A:If the outdoor station does not have a card swipe function, the outdoor station needs to be set to “don’t support access card” mode;If the outdoor station supports card swiping, the outdoor station needs to be set to “support card “ mode.

Q:When someone presses the doorbell, the device is working but the doorbell does not ring.
A:Please set the screen to home screen mode, the doorbell will ring when you press the doorbell；If the doorbell is set to message mode, it will not ring when you press the doorbell.

Q:The distance between my doorbell and the screen is a bit far, and the image is blurry. What should I do?
A:If the distance between the screen and the doorbell exceeds 30 meters, the doorbell needs to be powered separately.

Q:I purchased two screens, how do I install them?
A:Set the screen connected to the doorbell as the main screen, set the digital ID to 1, connect the next screen using the out port, connect the second screen to the in port, and then change the digital ID to 2

Q:My video is blurry, black and white, or even no image. What should I do?
A:Please set the settings to PAL 1080 and automatic, or you can adjust it on the back of the doorbell https://www.youtube.com/watch?v=OY1BSGgwSkc

Q:How do I add my fingerprint and password?
A:Please refer to this video https://www.youtube.com/watch?v=8Adt1uQd53Q,

Q:What should I do if my device suddenly cannot connect to the Internet?
A:Power off and restart the device, or update the system.

Q:My video intercom has been working fine for two weeks, but suddenly I can't hear anyone else's voice coming through the doorbell. What's the reason?
A:Please check the line settings to see if the audio cable is dropped or has poor contact or falls off. You can also plug it into door2

Q:My lock is connected to the doorbell, but it won't open the door. What's going on?
A:Please check if there is any error in the wiring. If it cannot be unlocked when connected to the 2PIN port, please connect to the 3PIN port to power the lock. At the same time, you also need to pay attention to distinguish between NO and NC.

Q:I bought 64218+61010, connected it to the power supply, and found that the LED indicator on the screen did not light up. What is the reason?
A:Please note that if you buy 64218 or 64202, there is a separate 2PIN line. We pack them separately and mark them before delivery. You cannot use the doorbell's 2PIN line to connect to the screen's power supply because their positive and negative poles are opposite. The correct connection should be the red line close to the LED indicator. If the connection is correct and it still doesn't light up, it may be a problem with the motherboard.

Q:Does the smart central control panel support Bluetooth connection?
A;Yes, but the Bluetooth function is different.
Receive function: (can connect to mobile phone, can not connect to Bluetooth speaker: Q7)
Transmit function (can connect to Bluetooth speaker, can not connect to mobile phone: 10 inch, 12 inch
Transmitter and receiver: (4 inch, 6 inch (F6), 6.8 inch, 7 inch (F7), 8 inch (F8)

Q:Does the video intercom device support connecting to sliding doors? If so, how can I connect it?
A:Support. Use door bell “COM” and “NO” two wired connect to silding gate opener

Q:Hello, since there are power outages here from time to time, can I use a DC12V battery pack to power the video intercom equipment?
A:The video intercom doorbell is not low power and needs continuous power supply, and video transmission requires a larger current, so it cannot be powered by a battery pack.
