7 Inch Touch Screen WiFi IP Video Intercom System & Wireless Ethernet Air Connector Port Bridge with Security Camera LAN Switch
Our Product Just Works Well With Our Own Intercom System. We Could Not Guarantee It Could Be Compatible With Other Brand Indoor Monitor/Outdoor Camera. If You Need To Connect Other System ,Please Contact Us For Technical Support Before Buying.
SIP Digital Villa Video Intercom System?
♦ Support iOS & Android smart phone with Tuya Smart APP.
♦ Connected via TCP/IP protocol between intercoms, Connected via SIP protocol between intercom and smart phone.
♦ Digital system, CAT5 Network cable connection.
♦ 2-way communication between indoor and outdoor unit. Support 2 way communication between monitors.
♦ 1.0MP Camera, wide view angle.
♦ When somebody call at outdoor, your monitor and smartphone will ring at the same time.
♦ Voice message and motion detection, supported Alarm Home System, can add 8 security zones alarm (such as: smoke sensor, gas sensor, PIR sensor...etc)
♦ WIFI Enabled or Wired Router.

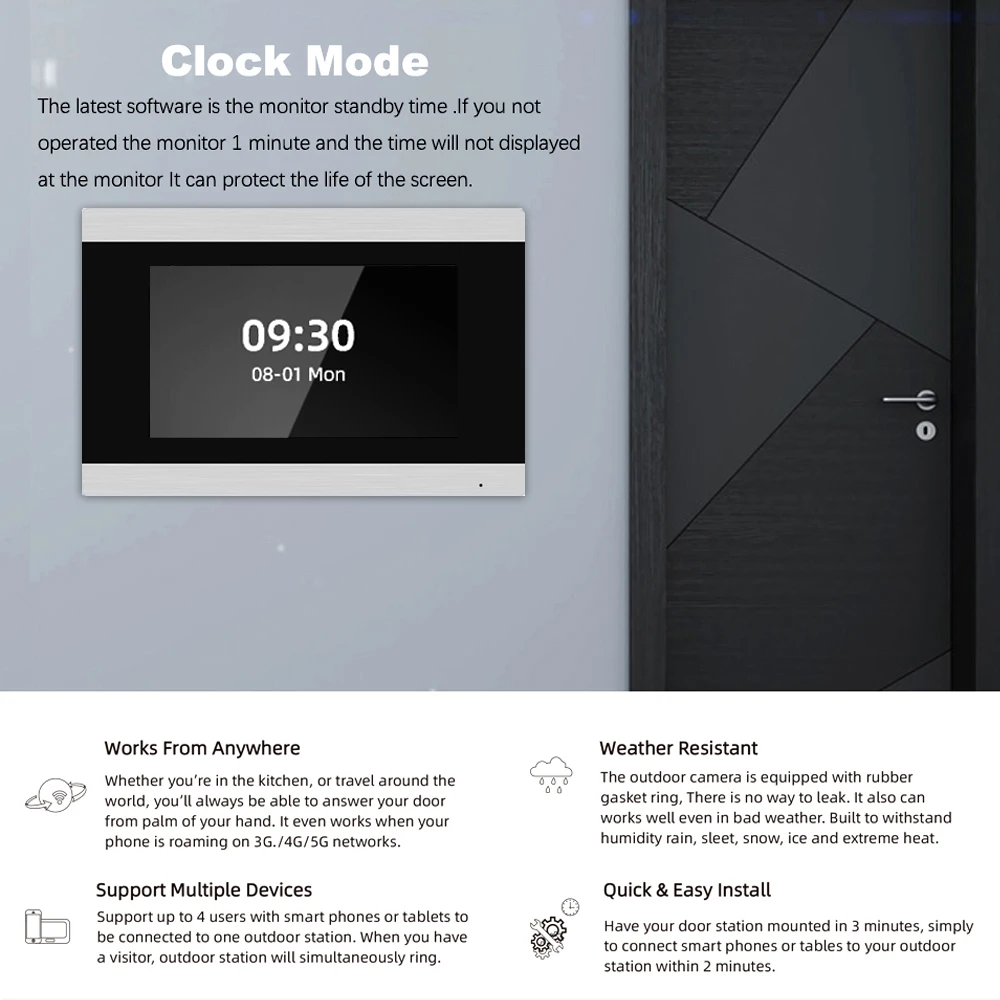

Clock & Date Mode
The latest software is the monitor standby time. If you not operated the monitor for 1 minute and the time will not displayed at the monitor. it can protect the life of the screen.
♦ Digital system, use CAT5 network cable
♦ Monitor nobody receive call within 30s, the call will transfer to smart phone; or visitor leave a message for 40s transfer to smart phone ♦ 2 way communication
♦ Same floor or different floor support monitor call monitor
♦ PC user as adminitor, can call all monitors
♦ 8 smart home security zone supported
♦ Between intercom use TCP/IP protocol, Intercom to smart phone use SIP protocol
♦ Support setting un-lock time, suitable for different electronic lock
♦ Max. support 3 smart phone to unlock the door account (never miss your call)
Never Miss a Visitor
This SIP apartment video door phone system lets you answer your door by smartphone from anywhere.
Multi-languages OSD Menu
The System Supports Different Languages: Russian, English, Chinese, Spanish, Turkish, Portuguese, German, French, Italian, Polish, Bulgarian and so on.
Handsfree Dual-way Intercom
Communication between indoor monitor and outdoor camera is supported. Let you know easily what the visitor is talking about.

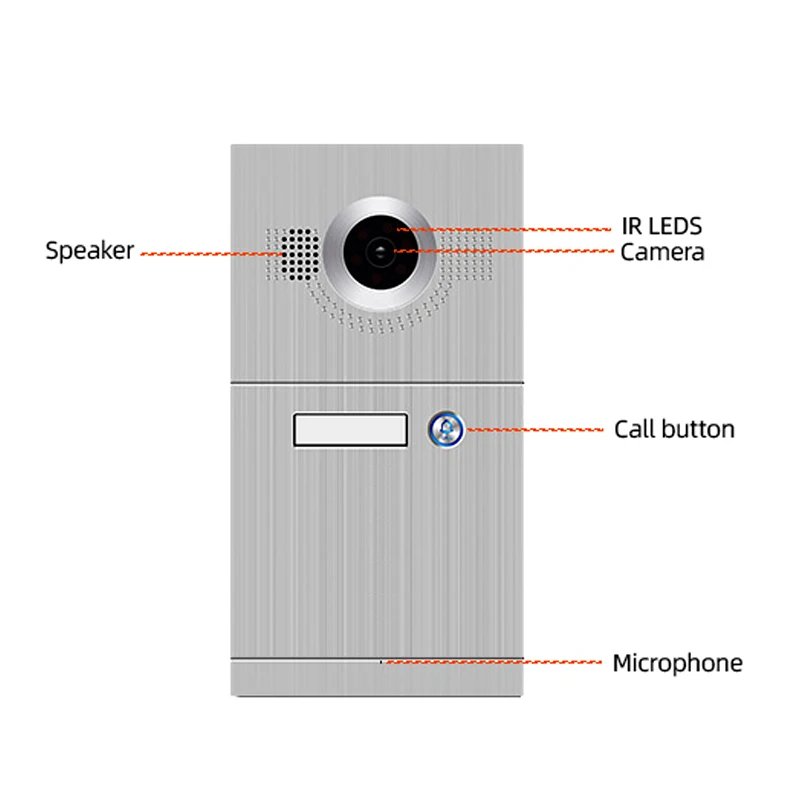

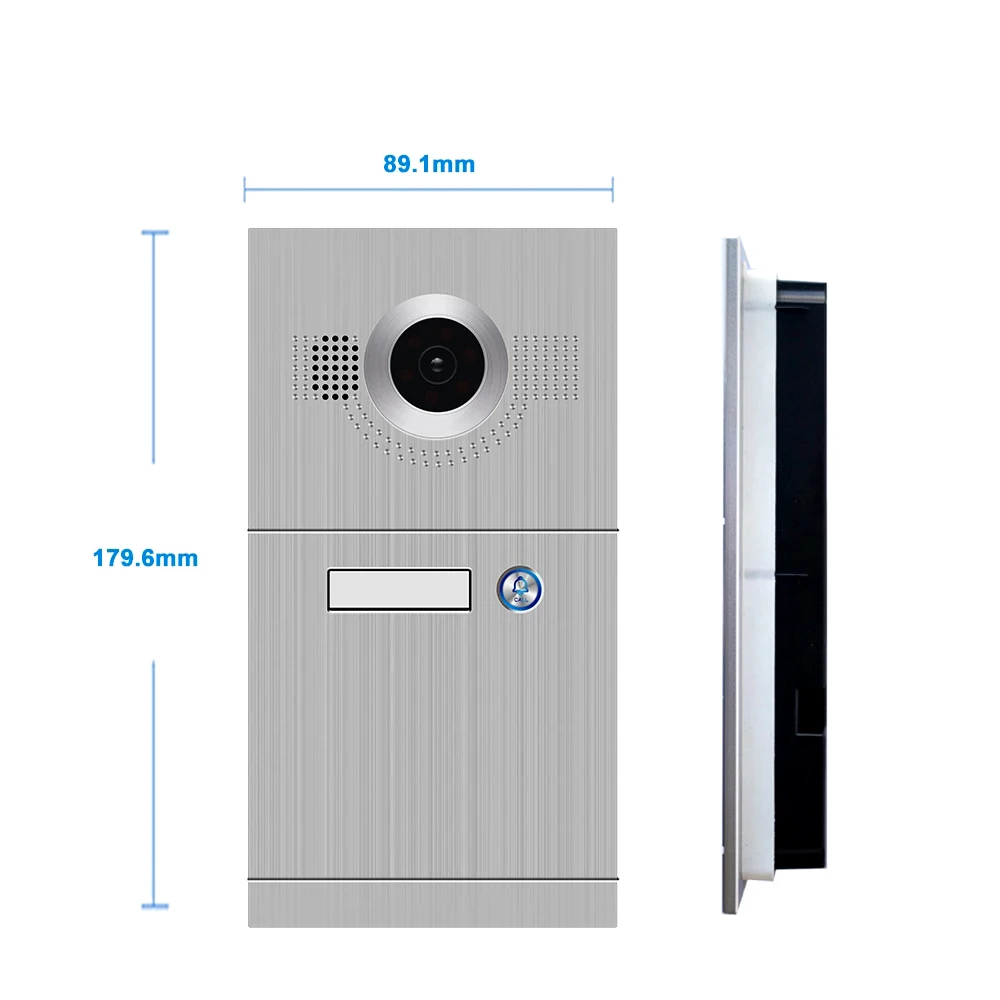

Outdoor Call Panel

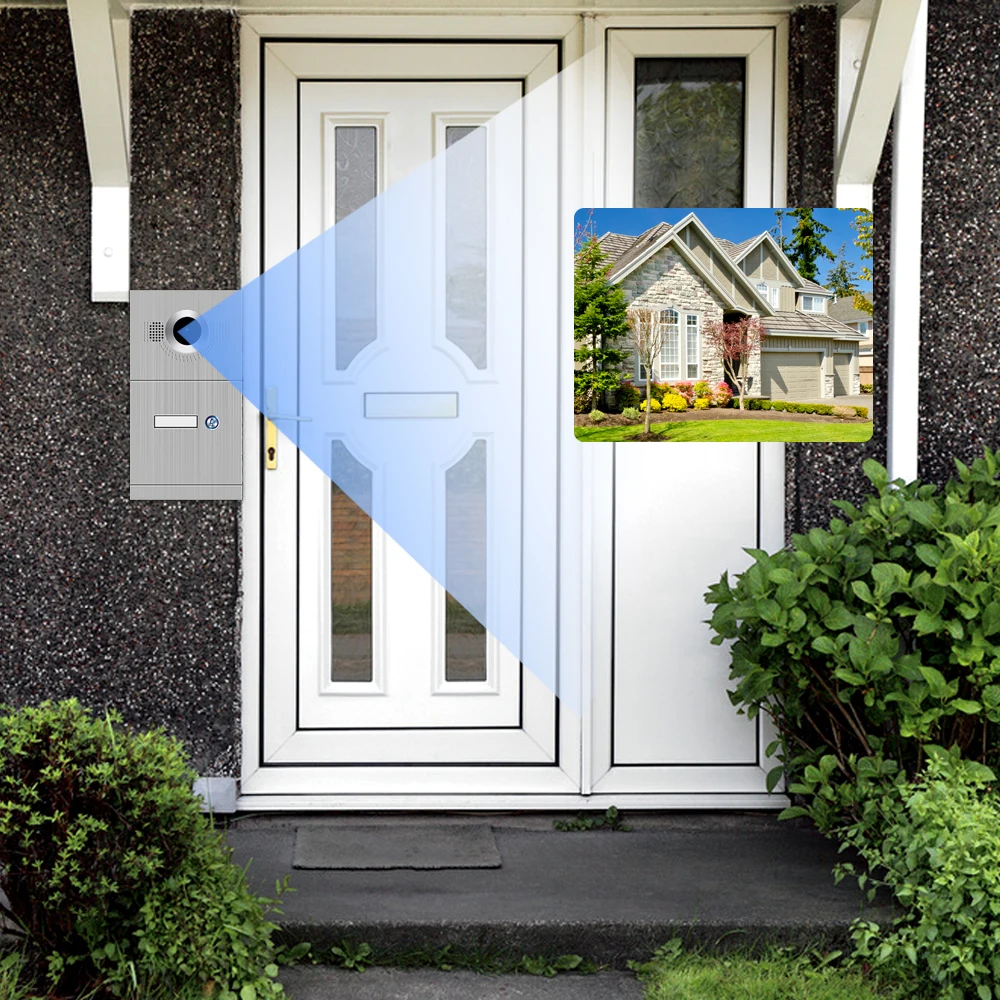

♦ 110 degrees Wide angle camera ♦ Rust-proof anti vandal panel ♦ White LED offset lighting can obtain better evening viewing ♦ Unique waterproof IP65, dustproof, anti-thunderstorm design ♦ Special design rubber for waterproof

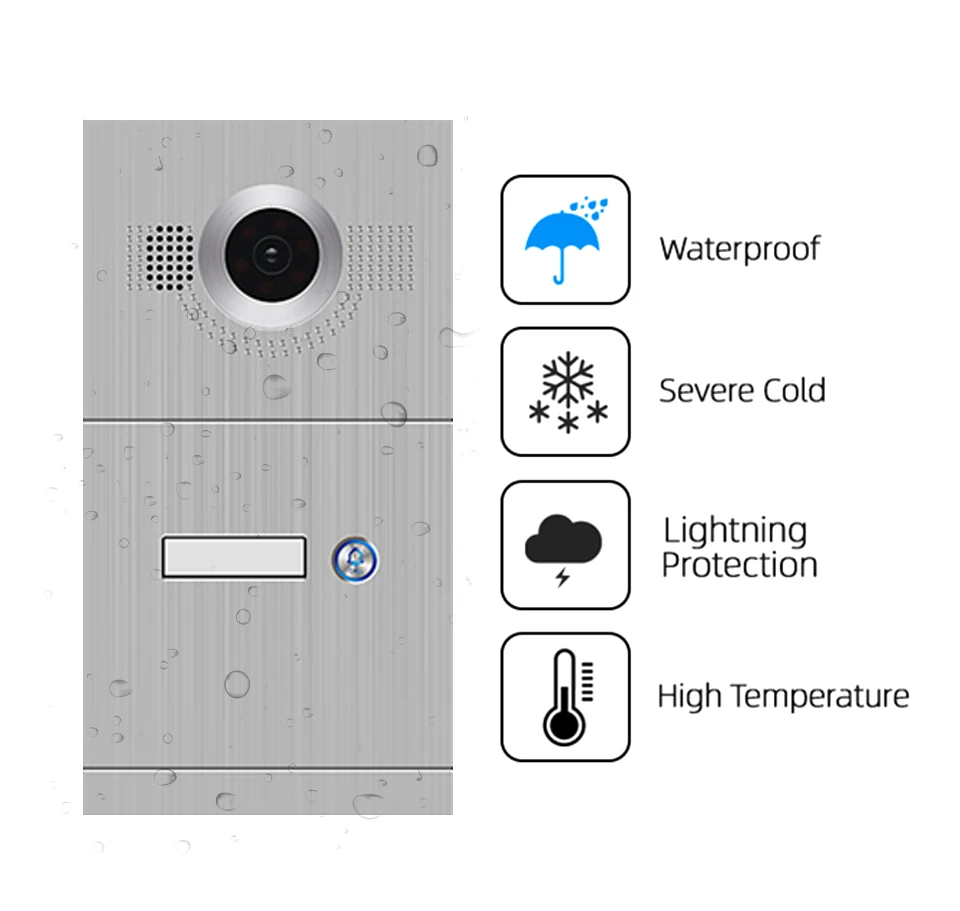

Doorbell IP65 Waterproof, Anti-thunderstorm Design
The Outdoor Camera Is Equipped With Rubber Gasket Ring, There Is No Way To Leak. It Also Can Works Well Even In Bad Weather.
1.0MP High Resolution Camera With IR Leds, View More Clearly.
1.0 MP High Resolution HD CMOS, See Sharper And More Details Than CVBS 800TVL or 1200TVL cameras. With IR leds, you can see clear picture even at night without lights.

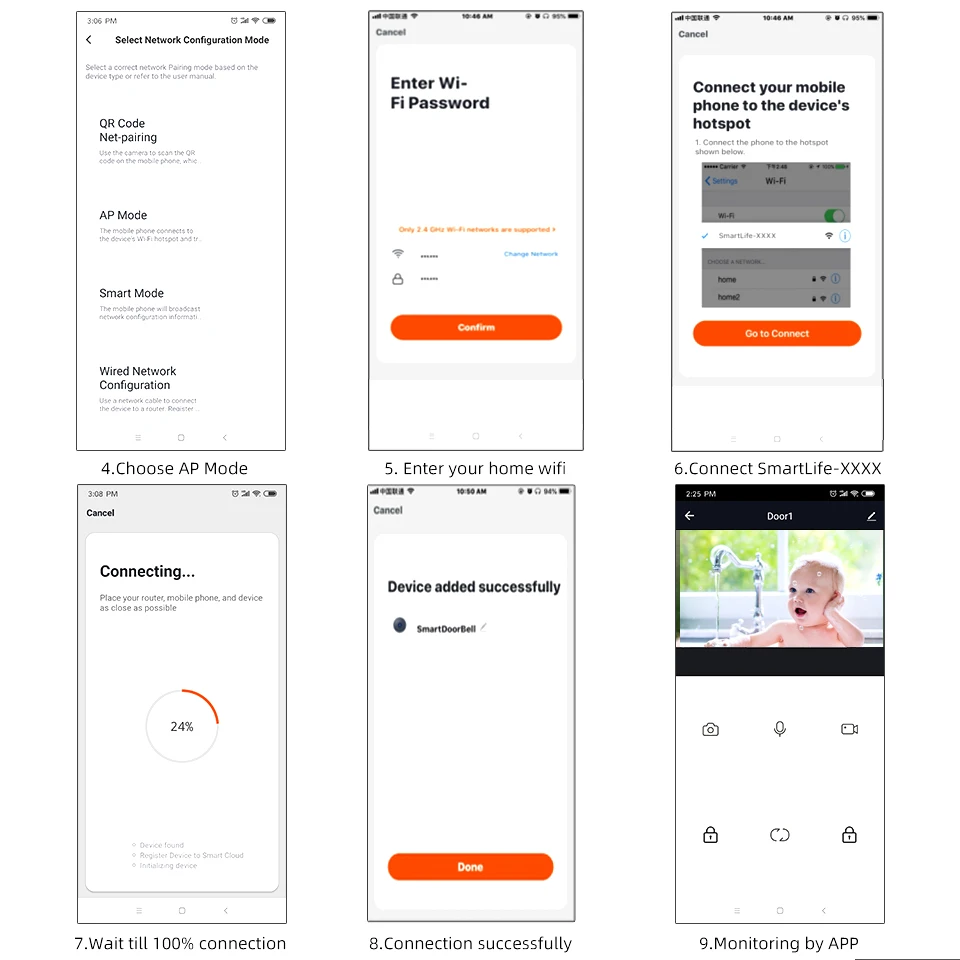

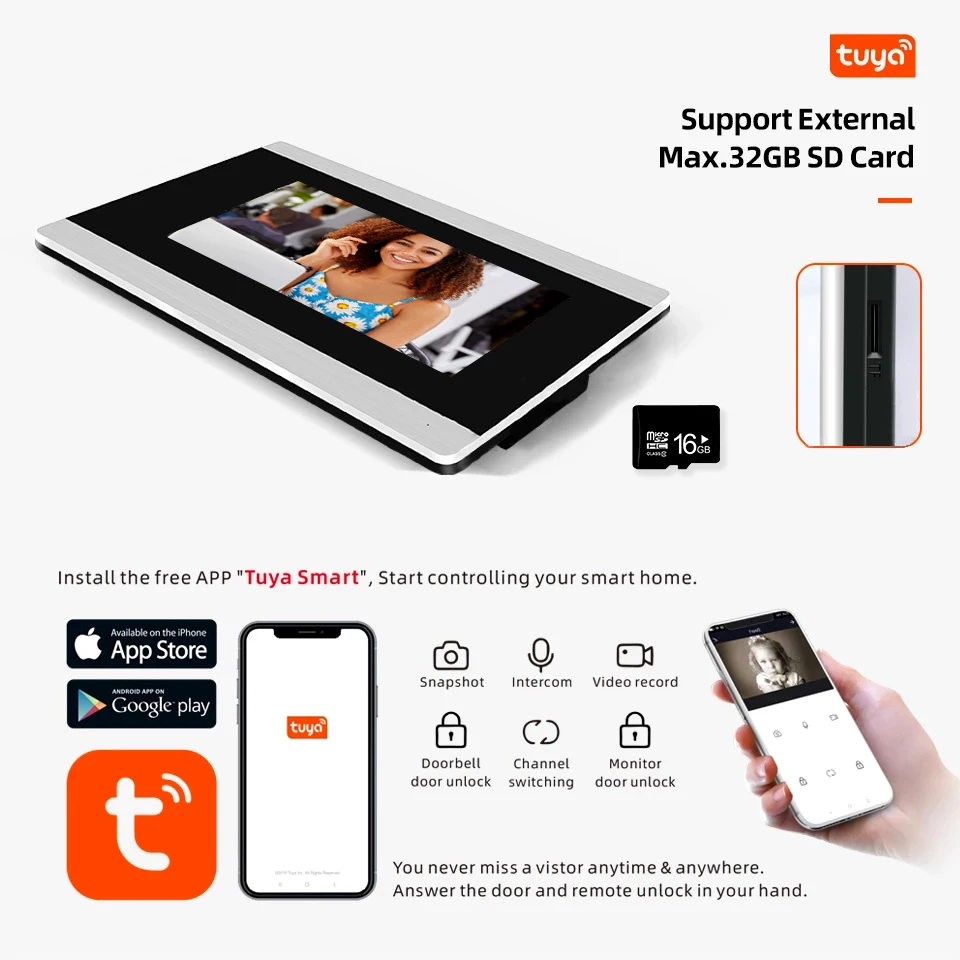

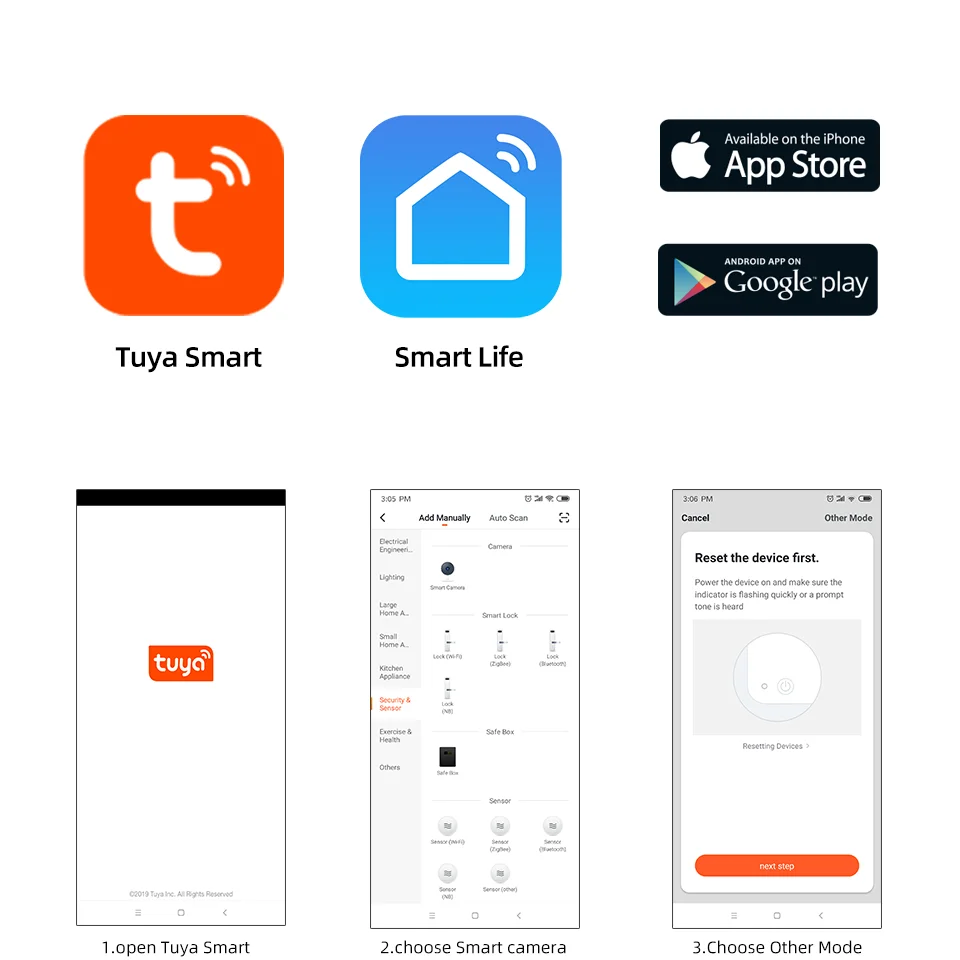

Connect your smart phone with monitor by Tuya
This Video Door Phone System Supports One Apartments
There are 1 call buttons separately on the call panel, when the visitor presses one of these call buttons, the monitor connected with this call button will ring, and the house owner can monitor the visitors and unlock the door from monitor's "unlock" button, or from mobile phone's App. If you wanna have more monitors in your house, you can connect more monitor to your family's system, by adding LANswitch or POE switch.
App Notification Push:
With the latest technology,when visitor press the doorbell,your phone will receive the APP notification, you can see,hear and speak to anyone at your door, even remote unlock via your smartphone in everywhere,No matter where you are, you can remotely access the camera to see live streaming and stay connected.

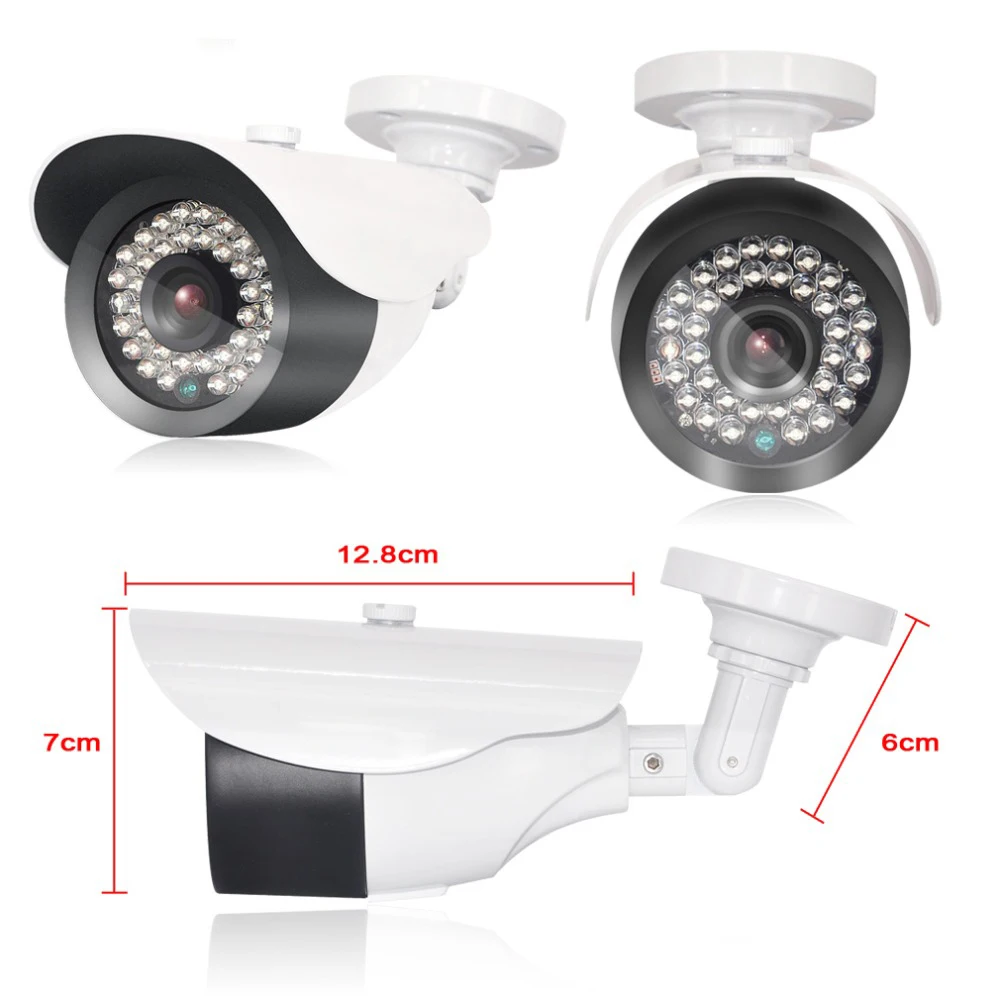

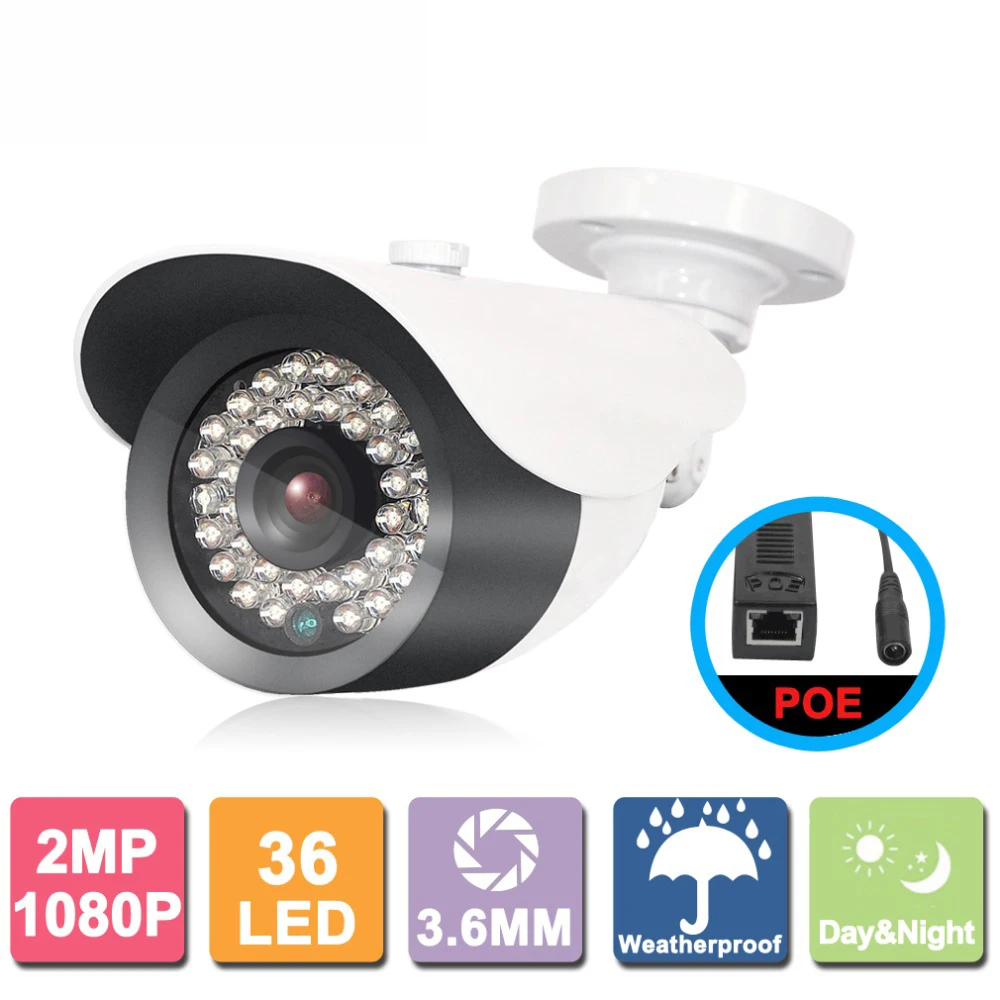

1080p High Definition Resolution IP Camera
Effortlessly add HD quality 1080p resolution easily use it as a high definition stand-alone system, this camera built in web server makes it easy to stream and share video without a direct connection to a NVR. All that needed is an internet connection and router. A quick fix or part of a larger integrated system, this HD 1080p IP Camera secures your property with crystal clear resolution .
The HD 1080p camera maximizes image quality, helping to recognize people. Automatic White Balance and Infrared Filters ensure accurate image color regardless of ambient lighting conditions. Dual encoded streams provide a streaming signal with reduced bandwidth to make sure you always have access to a video signal.
1080p IP Camera Specification:
* 1/2.5-inch 2.0 Mega Pixel Full Real Time with IR CUT IP Camera
* Effective Pixels :1920(H)X1080(V)
* 3.6mm Fixed Lens
* IR View Distance:30m
* Plug & Play
* Video Push
* WPS & AP function
* PT function
* Onvif Compatibility
* wifi 802.11b/g/n
IP 66 Weatherproof
Resolution & FrameMain Flow: 1920*1080
Code Stream: Support Dual Stream Bit Rate
Type:CBR & VBR
SNR: Above 50DB
Image Enhancement:Automatic White Balance, Backlight Compensation,Luminance, Contrast, Color Adjustment
Support UC2 Monitoring Client Software,NVR and VM platform IP Camera
Mobile Client: Iphone, Android
Remote Access: DDNS, software, P2P
General Accessories: Power adapter, Network Cable, Stand, User Manual, Disk, Screw Bag
Water resistance: IP66
2-Pack Wireless Access Point with Ethernet Port Bridge Kit Outdoor Point to Point Connection Long-Range
Connectivity: Wi-Fi Halow security protocol
Transmission Distance: Max 3000ft with the 1080P video
Penetration Ability: 3-4 concrete walls
Power: 5V/1A DC
Operation Temperature: -5°F-120°F (-20°C-48°C)
Antenna: elngth 19cm with 2dbi gain
Warranty: 12 months Parts and Lifetime Purchase Protection
FCC ID: 2AXPI-TX-AH-R900ATR

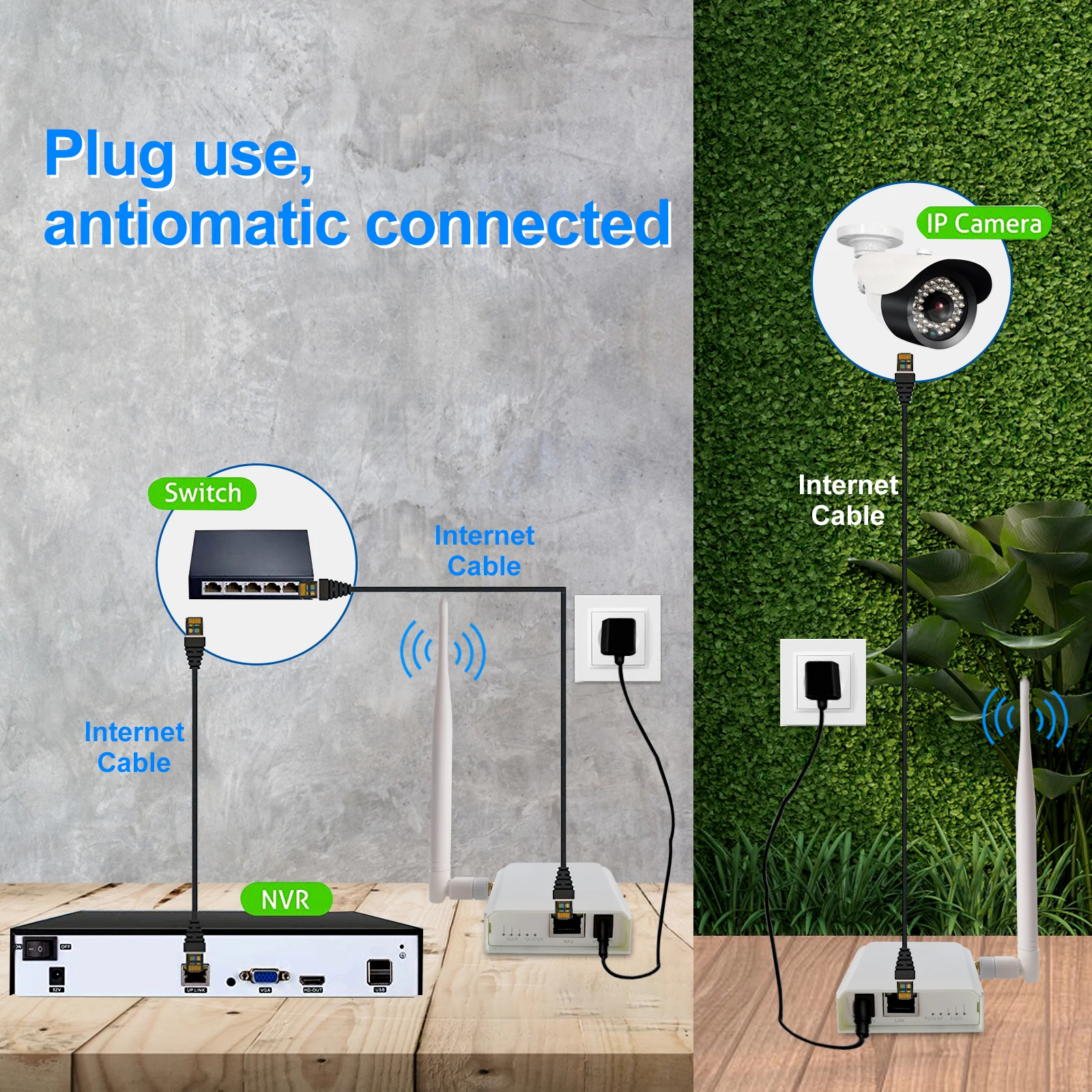

How to Use:
1.Plug in the antenna
2.Drill the hole and screw the Scenes Air on the wall
3.Plug in the power supply
4. 1 Pack connects to IP camera, the other pack connects to the network NVR, and the connection will be set up.
Note1: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Note2: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.

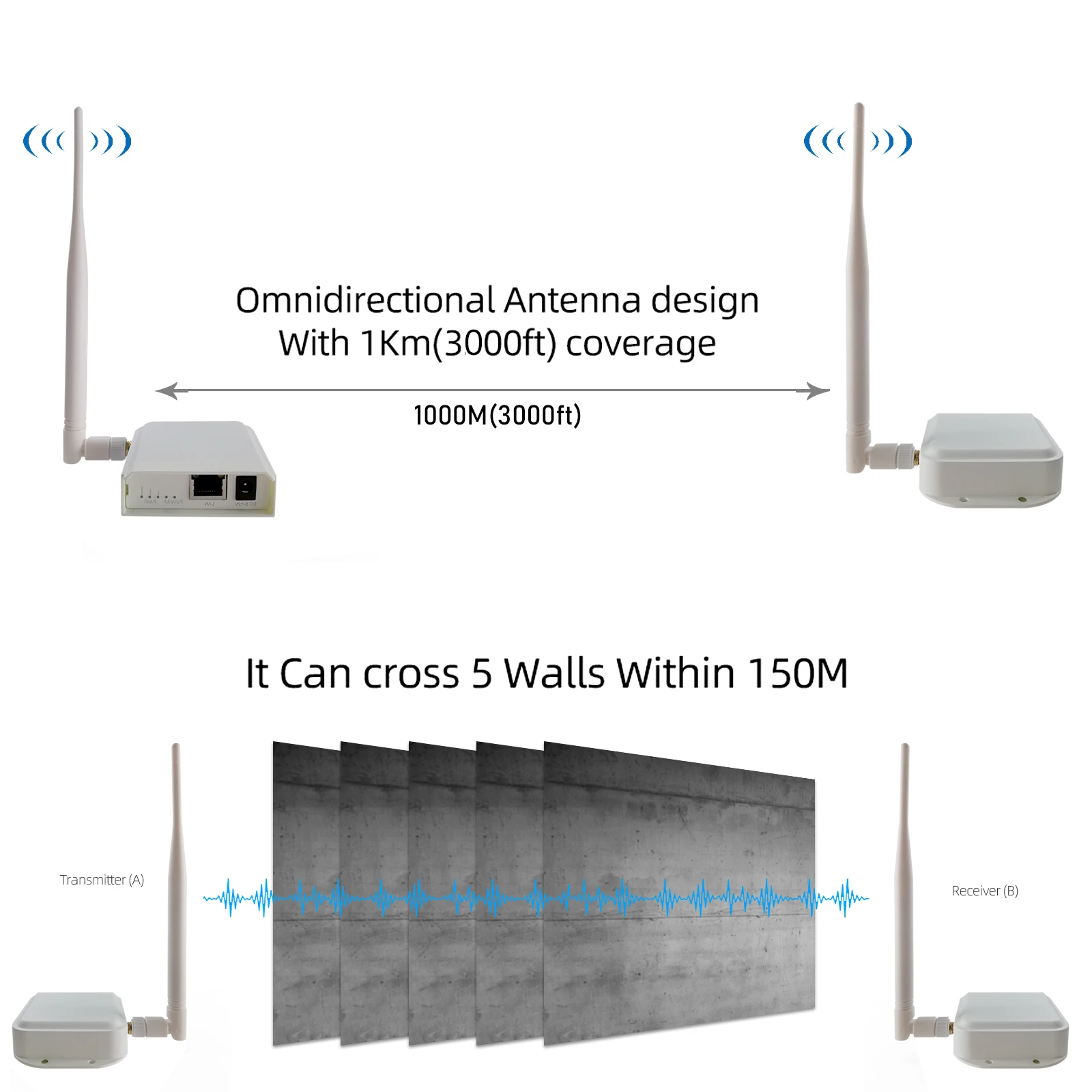

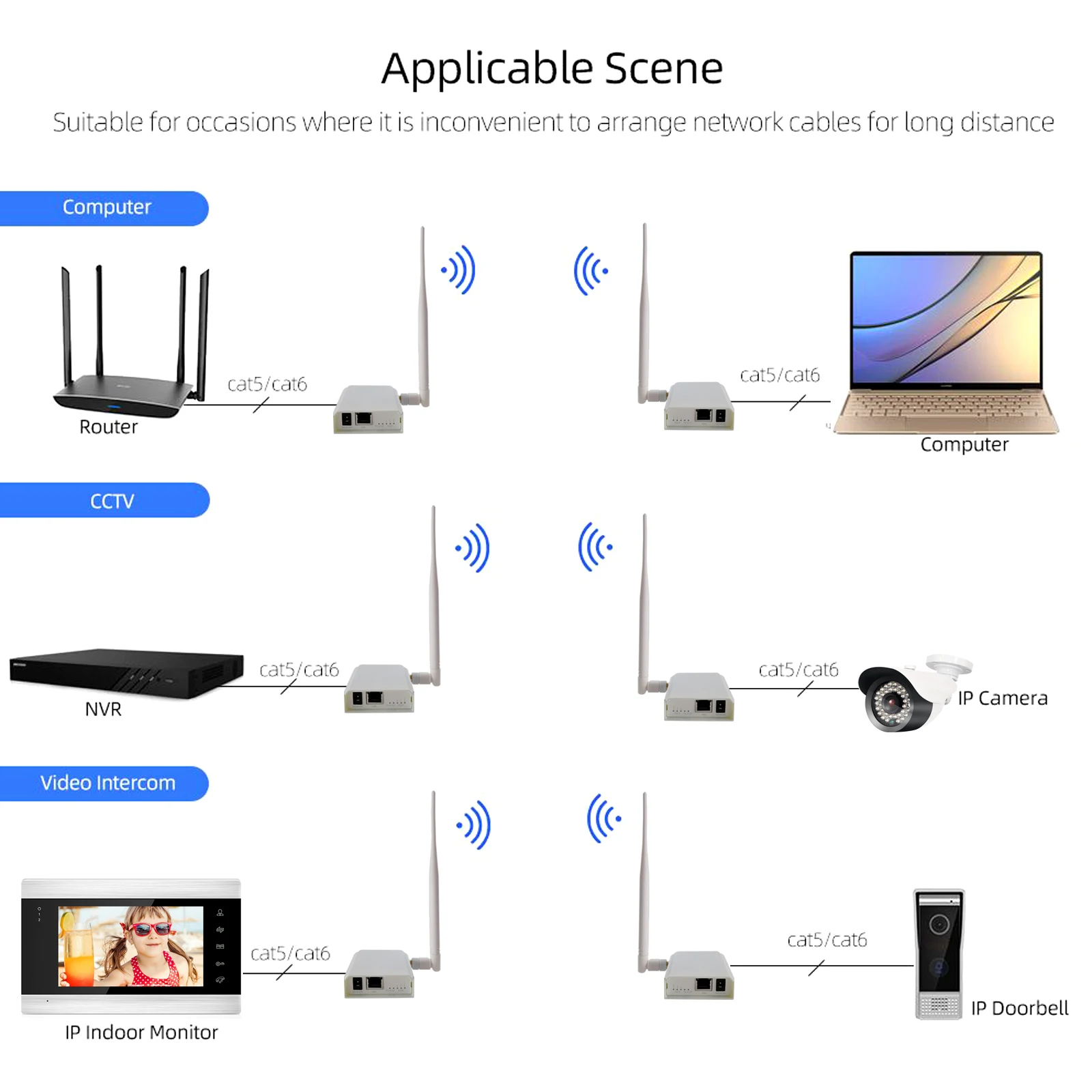

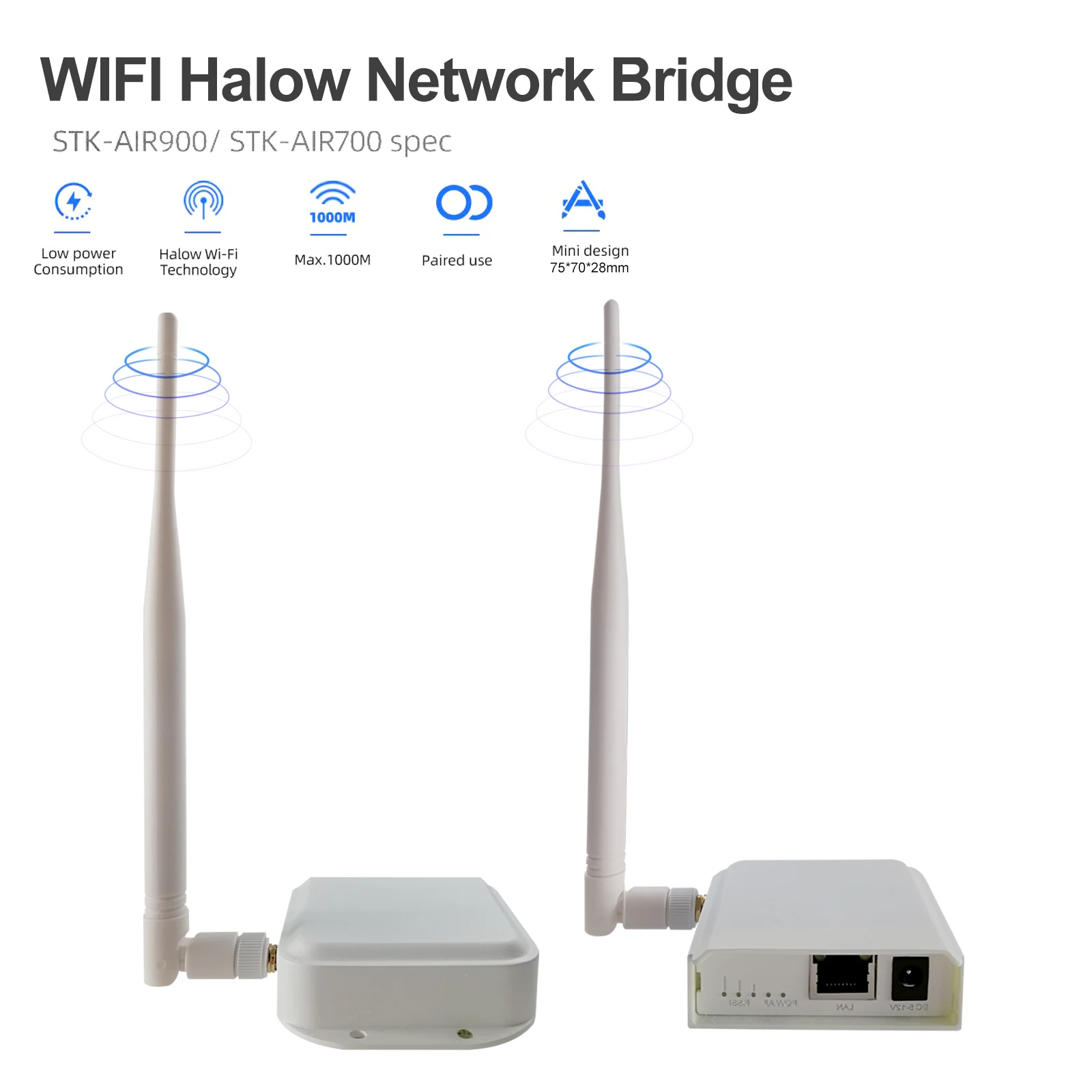

The Wi-Fi Halow standard network bridge that works on the 902-930MHz(760-790MHz) frequency. The model is dedicated to cost effective solutions for wireless networking applications.
It is ideal for point-to-point signal coverage applications. Professional performance, coupled with user-friendly design, makes the model an ideal choice for both business and home users. Compare with the traditional Network bridge or the CPE, the model is the first device with the Omni-directional antenna for the 1Km signal transmission or strong penetration capability.
Wireless Bridge Kit
1.Antenna network bridge with 3000ft max transmission distance in open space.
2.Support piont-to-piont connection.
3.Design for remote monitoring and widely use with the IP camera.
4.Plug and play, simple to build the connection.

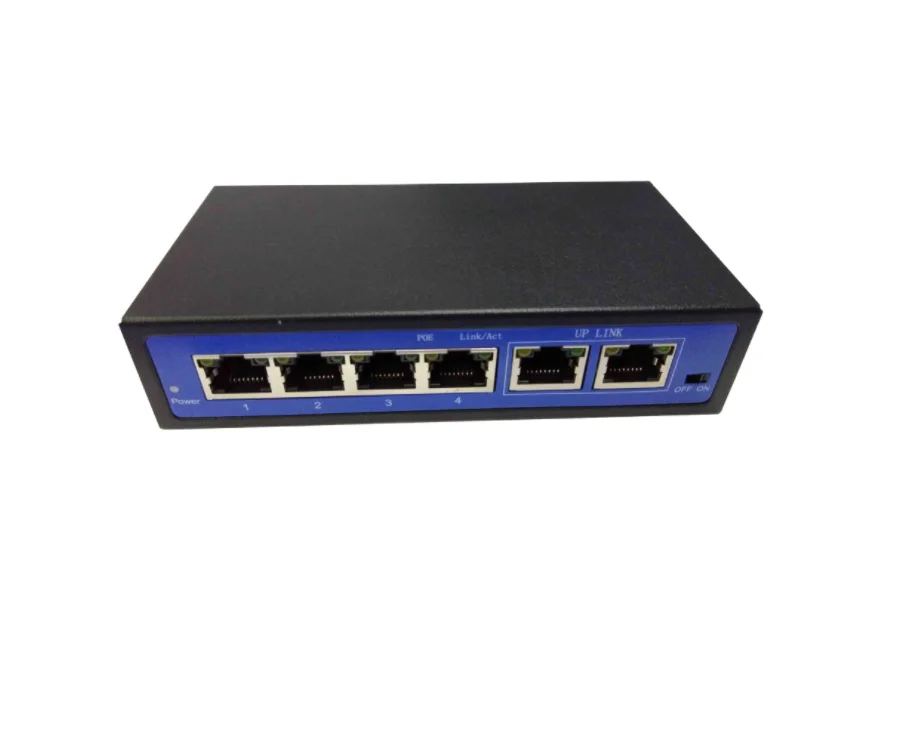

4-Port LAN POE Switch
10/100 Mbps access, Dual RJ45 port uplink
◇ Provides 6*10/100 Base-TX RJ45 ports and dual uplink power ports, which is more convenient for users to flexibly set up to meet the network requirements of various scenarios.
◇ All ports support non-blocking wire-speed forwarding for smoother transmission.
◇ Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.
IntelligentPoE power supply function
◇ 4*10/100 Base-TX RJ45 ports support PoE power supply, which meets the needs of PoE power supply in various scenarios in the security field.
◇Comply with IEEE 802.3af /at PoE power supply standard, automatically identify PoE devices for power supply without damaging non-PoE devices. The maximum PoE output power is 65W, and the maximum PoE output power of a single port is 30W.
Easy to use
◇ Plug and play, no configuration, simple and convenient.
◇ Users can easily understand the working status of the device through the power indicator (PWR), port status indicator (Link/Act), and PoE operation indicator.
Innovative function (only with function switch type)
◇ Long distance file: When opening, the speed of 1-4 port is reduced to 10M. With the existing twisted pair cable, the transmission limit of the twisted pair line can be broken, and the transmission distance can reach 250 meters; on the other hand, It can solve the problem of poor transmission caused by line aging.
◇ Video monitoring mode: Open with the long distance switch, 1-4 ports are isolated from each other but communicate with 5-6 ports to prevent DHCP conflicts, optimize port cache utilization, and reduce broadcast storms.
The equipment is stable andreliable
◇ The host has low power consumption, no fan and silent design, galvanized steel and metal casing, and excellent heat dissipation to ensure stable operation of the product.
◇ The equipment fully complies with the CCC, CE, FCC, RoHS safety requirements, and is safe and reliable.
The Cat5 Cable Is Not Included, You Need To Buy It Separately According To Your Needs We Will Send Suitable Power Adapter To You According To Your Shipping Address.

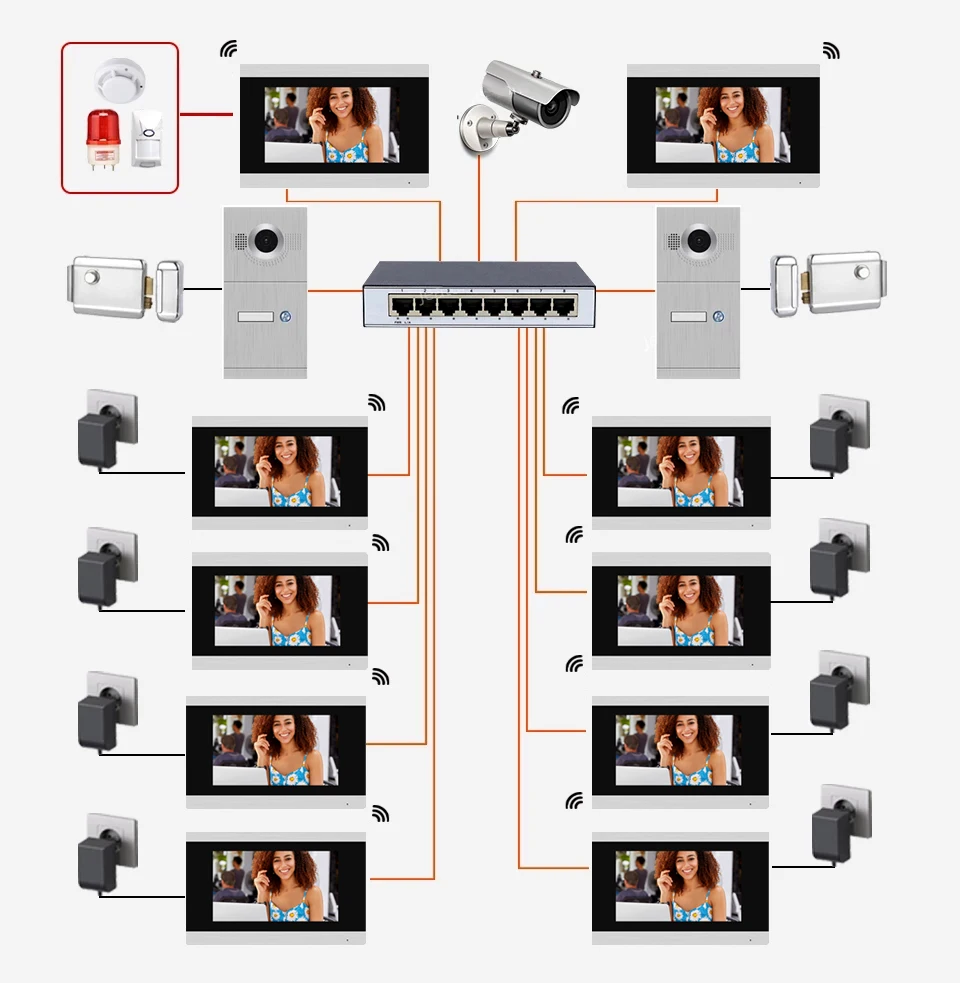

Villa Intercom System Diagram
With POE Function
Without POE Function
