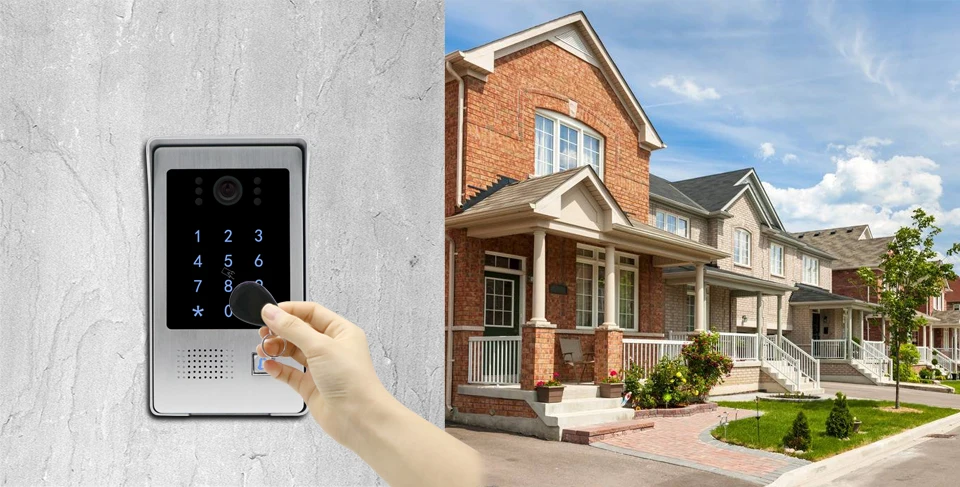

1080P AHD Tuya Smart WiFi Video Intercom Keypad/RFID Card Mobile Phone APP Unlock Motion Detection Home Access Control System
1080P AHD Tuya Smart WiFi Video Intercom Keypad/RFID Card Mobile Phone APP Unlock Motion Detection Home Access Control System
Couldn't load pickup availability

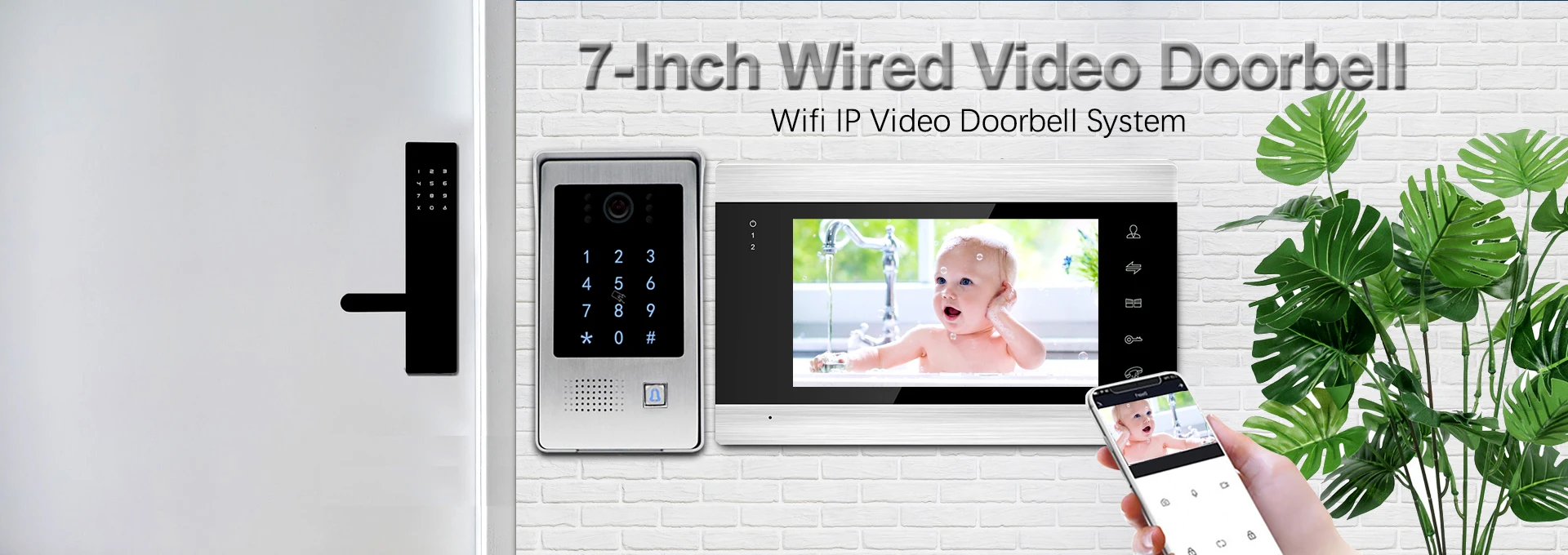

WiFi Smart IP Video Intercom System
This is a video intercom with a wifi function that supports working with mobile phones, when visitors press the doorbell, your phone will receive the APP notification, it means you can use the app to open the door, talk with visitors, watch video and so on, when visitor press the doorbell, your phone will receive the APP notification.

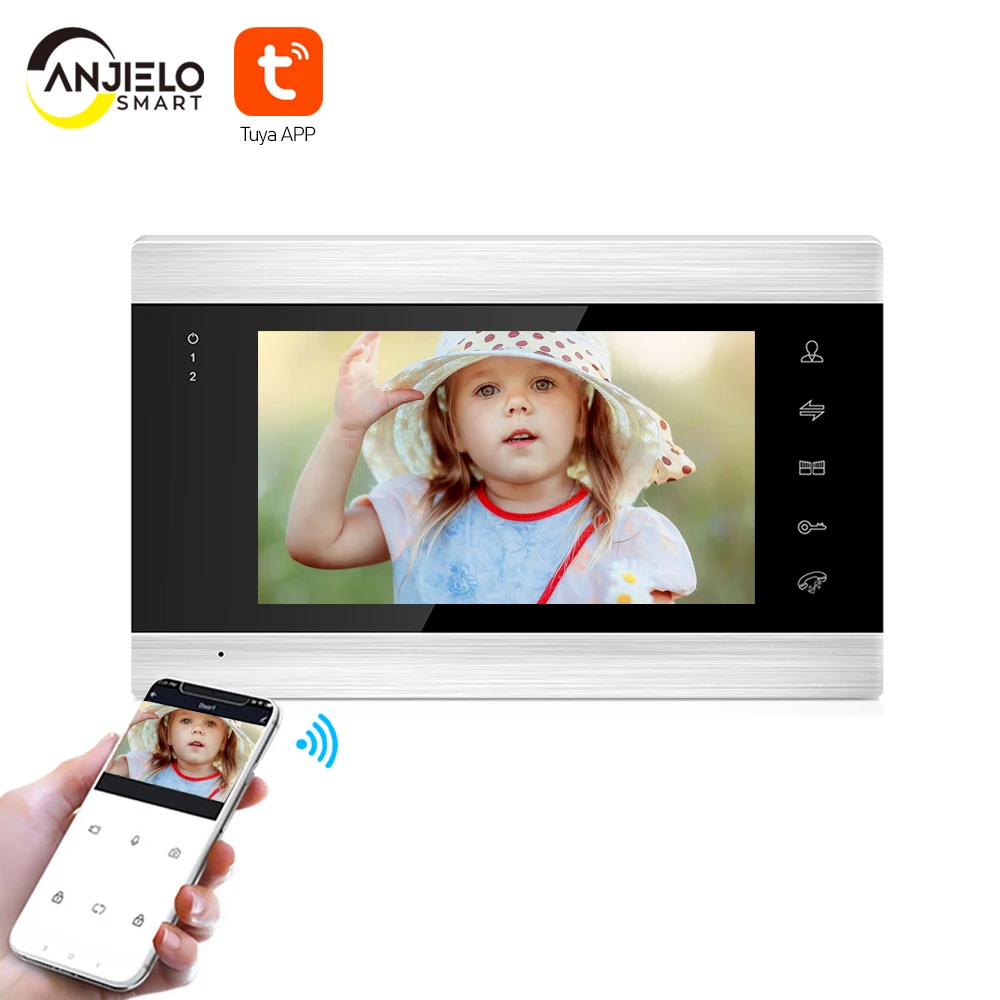

Indoor Monitor:
♦ Resolution:1024(H)*3(RGB)*600(V)
♦ Calling Mode: Two-way Intercom
♦ Unlock:Monitor, smartphone and tablet unlock
♦ Memory: Micro SD Card (not included,64GB max.)
♦ Network: WIFI/RJ45 port
♦ Power Supply: External power DC12V
♦ Installation Way: Surface Mounting
♦ Motion Detection : YES
♦ System : Support 6 Indoor Monitor + 2 Call Panel + 2 Camera
♦ Language: English, Russian, Ukrainian, Polish, Arabic, Portuguese, Azerbaijani, Turkish, French, Spanish, German
Parameter
♦ 7 inch LCD HD screen, the resolution is 1024*600, this kit comes with 1080P/1.0MP HD outdoor camera. Clearer viewing.
♦ Customize ringtone and wallpaper.
♦ Point to point transfer call to any indoor monitor.
♦ Support playing HD movies on the indoor monitor.
♦ Maximum support connect with 2 outdoor call panels + AHD 2 cameras + 6 monitors in one system.
♦ Compatible with most models of CVBS or AHD doorbell, max 1080P/1.3MP doorbell, and camera input.
♦ Unlock door function.
♦ Motion detection without the extra device (controlled by software).
♦ Call Panel and monitor volume could be adjusted.
♦ IR LED supplies you with clear night vision.
♦ Support Tuya smart / Smart Life APP remote control the door, view, and record.
Clock & Date Mode
The latest software is the monitor standby time. If you did not operate the monitor for 1 minute and the time will not be displayed on the monitor. it can protect the life of the screen.

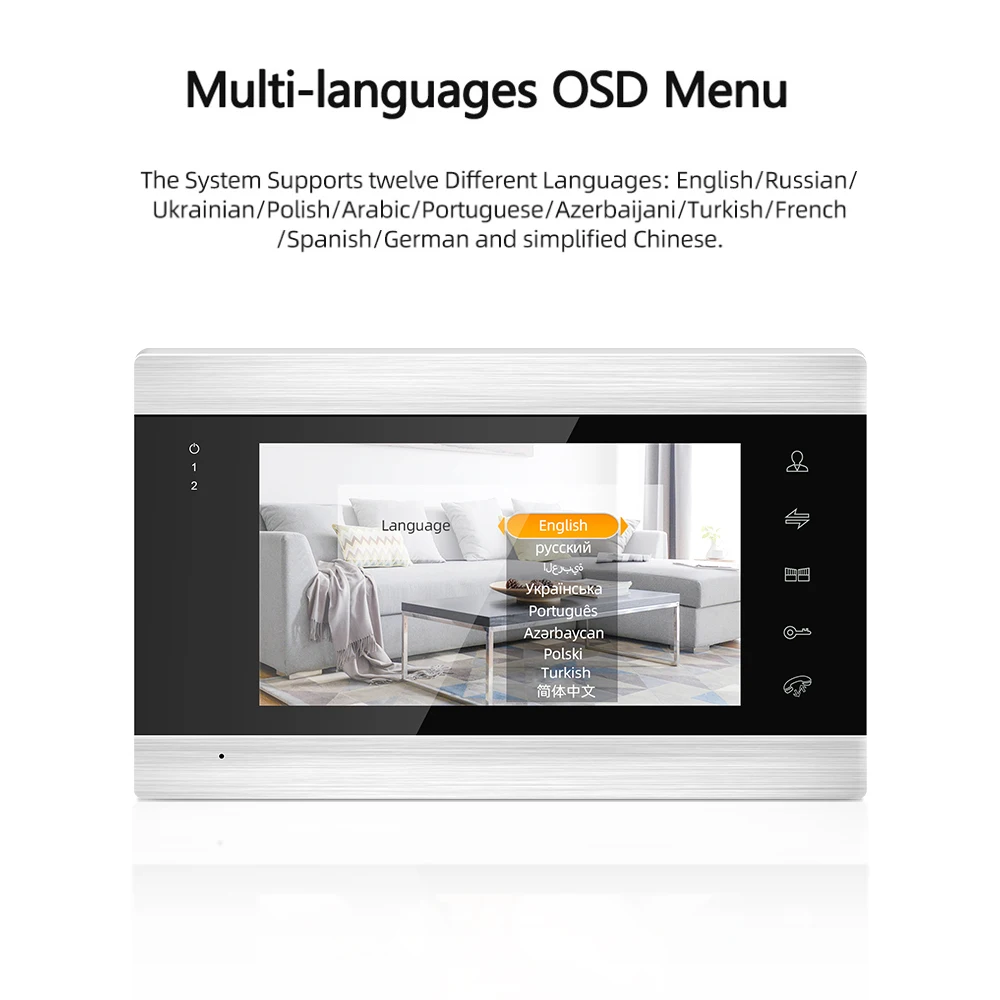

Multi-languages OSD Menu
The System Supports twelve Different Languages: English, Russian, Ukrainian, Polish, Arabic, Portuguese, Azerbaijani, Turkish, French, Spanish, German, and simplified Chinese.

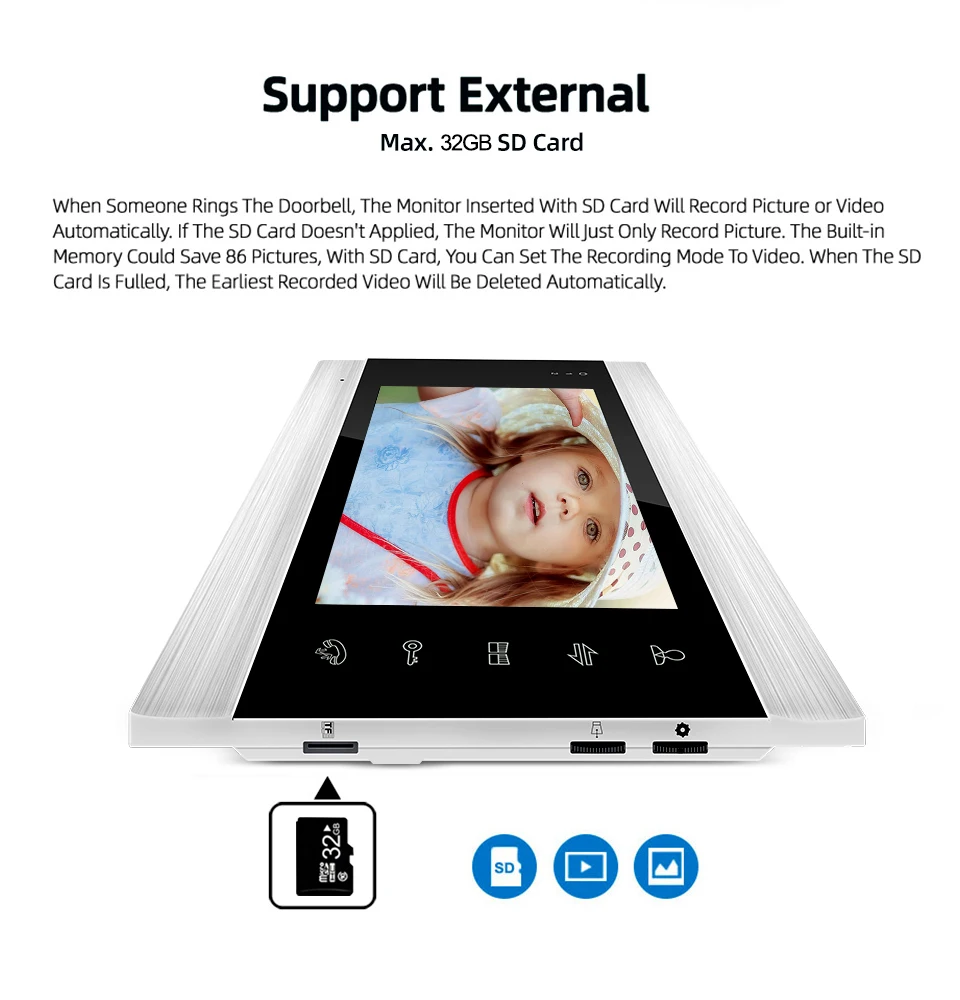

Video or Picture Record, SD Card Supported (Not Included)
When Someone Rings The Doorbell, The Monitor Inserted With SD Card Will Record Pictures or Video Automatically. If The SD Card Doesn't Apply, The Monitor Will Just Only Record Pictures. The Built-in Memory Could Save 86 Pictures, With SD Card, You Can Set The Recording Mode To Video. When The SD Card Is Fulled, The Earliest Recorded Video Will Be Deleted Automatically.

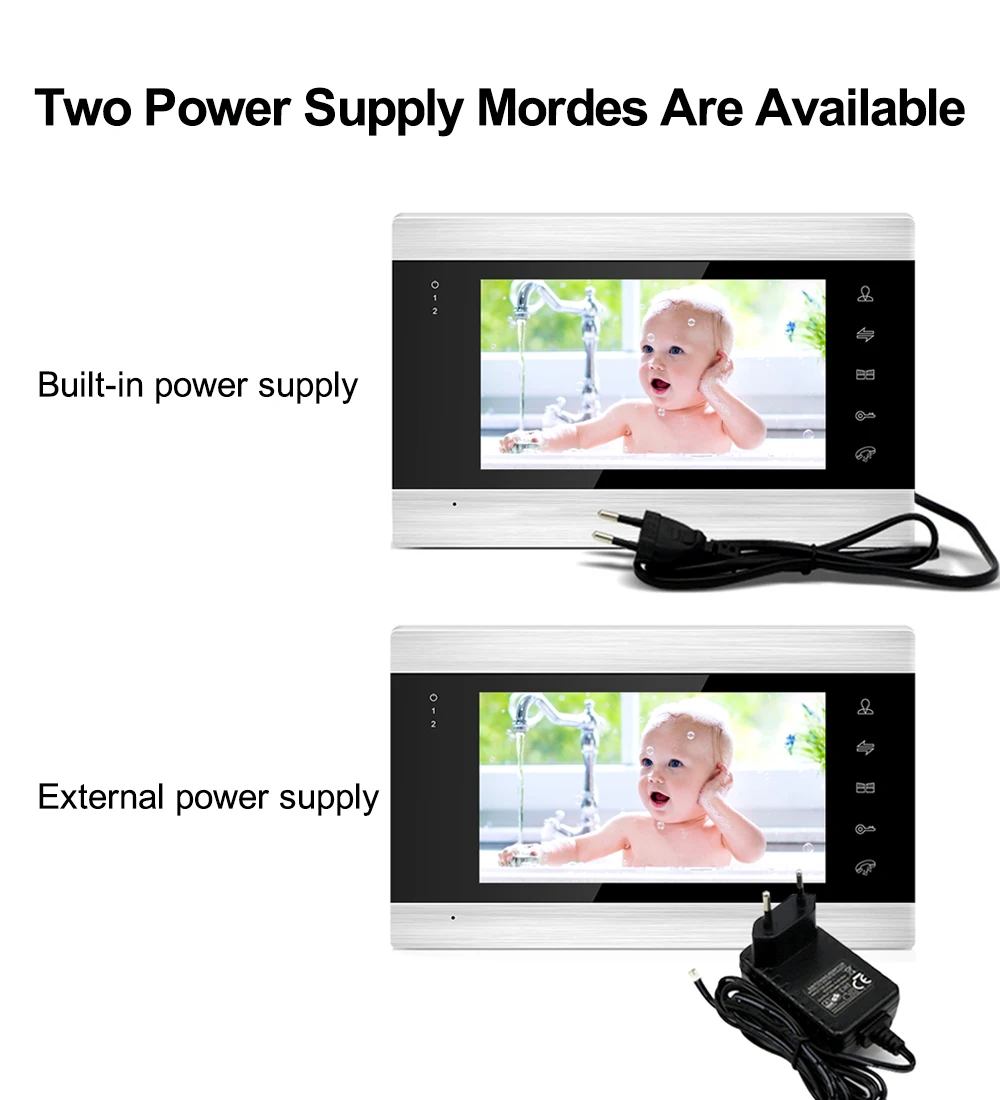

Built-in power supply and external power supply are optional
Motion Detection:
Built-in Motion Detection will trigger from 2 Cameras and 1 Call panel at the same time and Auto take video, which is more effective for monitoring strangers from every angle. With morning tech, no need to buy an extra PIR sensor, save a small money, but earn a big amount and safety home, You are worth it!
Excellent Performance
♦7" TFT Display, Plastic Case
♦Touch Button, MP4 Player, voice message supported
♦CVBS/AHD1.3MP input
♦Room Room Intercom
♦Door Answering, Monitoring, And Unlocking
♦Adjustable Color, Brightness, and volume
♦Support External Max.32GB SD Card.
♦Customize Ringtone and wallpaper

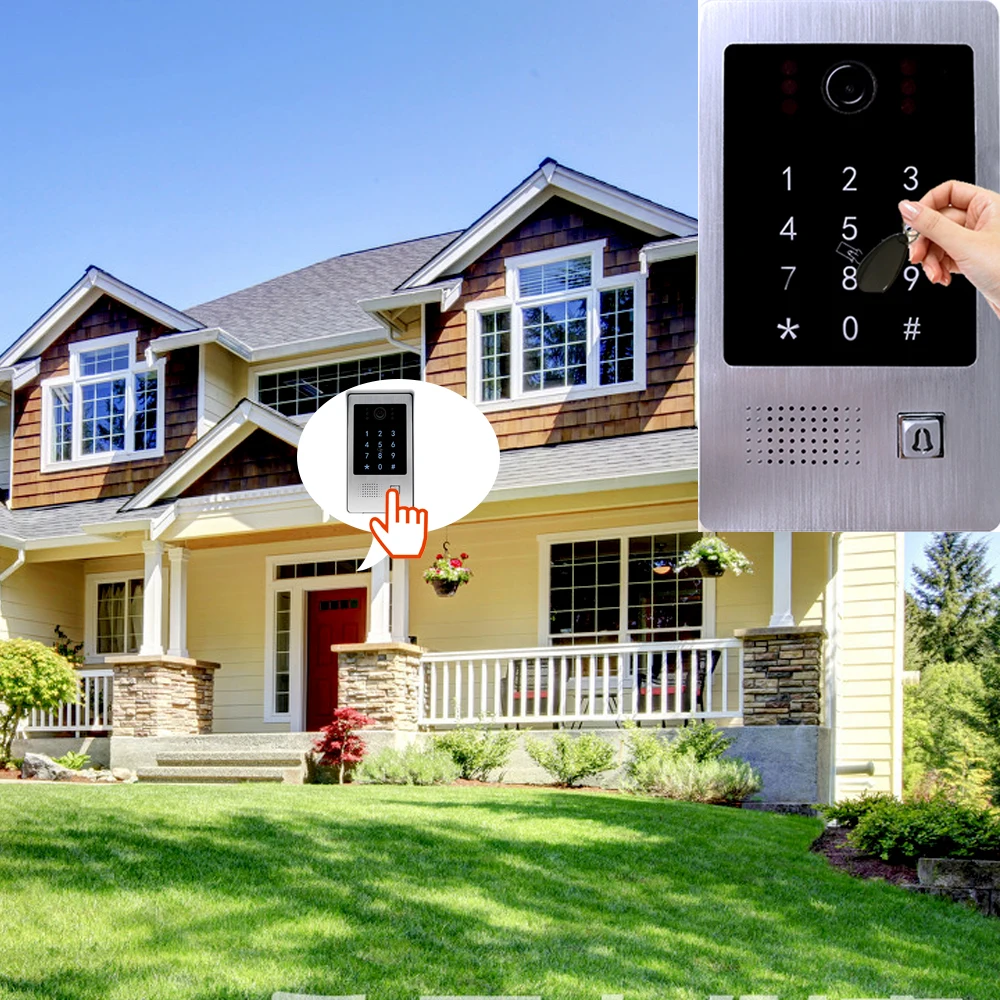

Outdoor Doorbell:
♦Camera Sensor:1080P
♦View Angle:110º
♦Power Supply: Supplied from indoor monitor
♦Material: Aluminum alloy panel
♦Waterproof: IP65 Weatherproof
♦Istallation: Surface mount
1080P/1.0MP High-Resolution Camera With IR Leds, View More Clearly.
1080P High-Resolution HD CMOS, See Sharper And More Details Than CVBS 800TVL or 1200TVL cameras. With IR LEDs, you can see a clear picture even at night without lights.

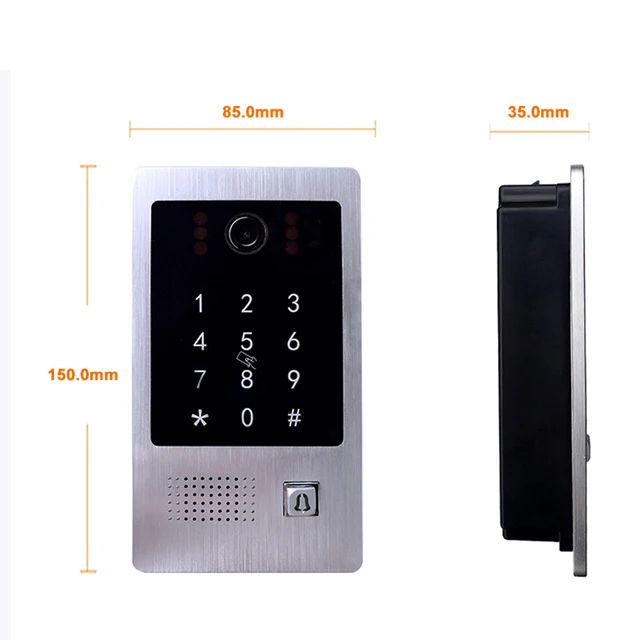

Doorbell Size
IP65 Waterproof, Anti-thunderstorm Design
The Outdoor Camera Is Equipped With Rubber Gasket Ring, There Is No Way To Leak. It Also Can Works Well Even In Bad Weather. There are two installation methods, choose what you want.

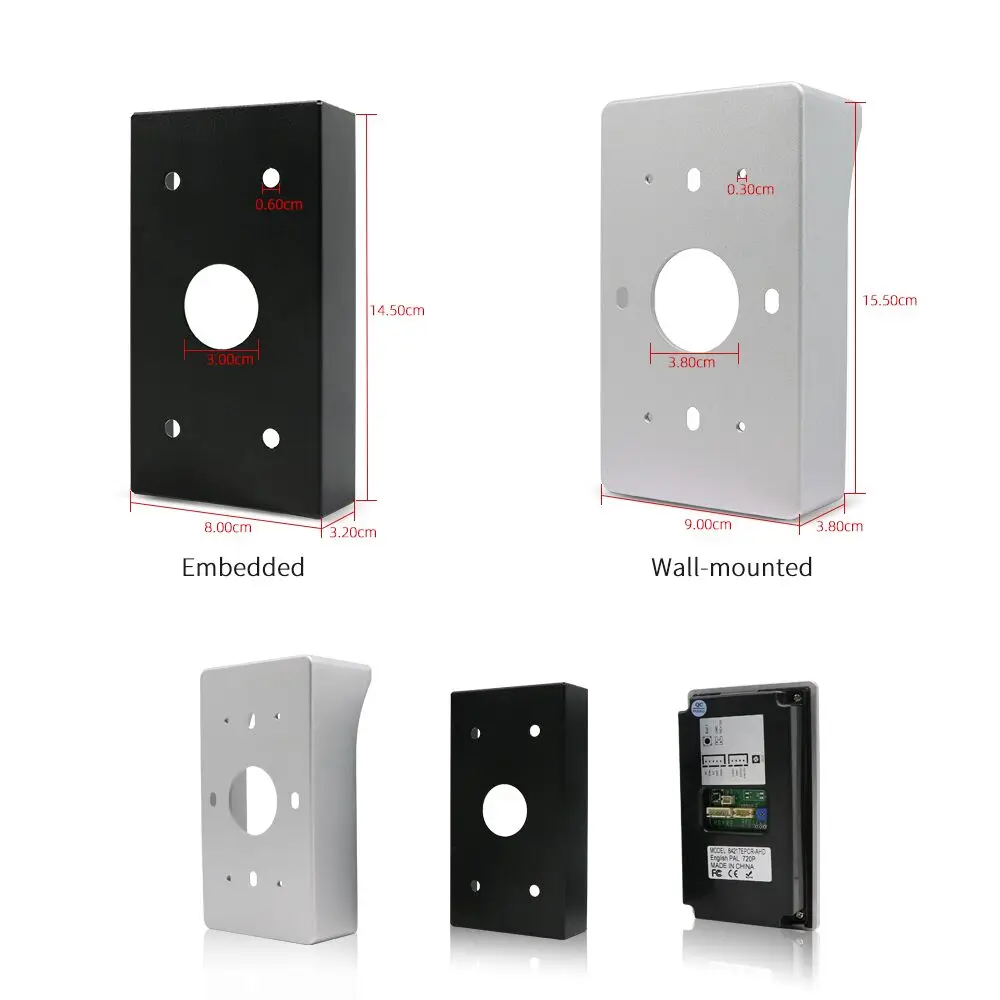

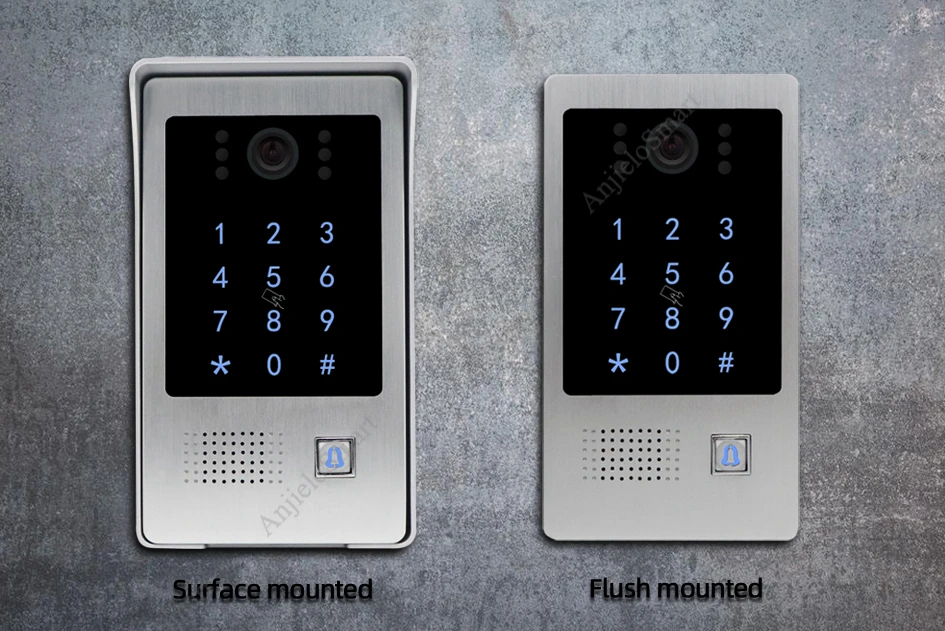

Two Different Installation Methods: Surface Mounted and Flush Mounted

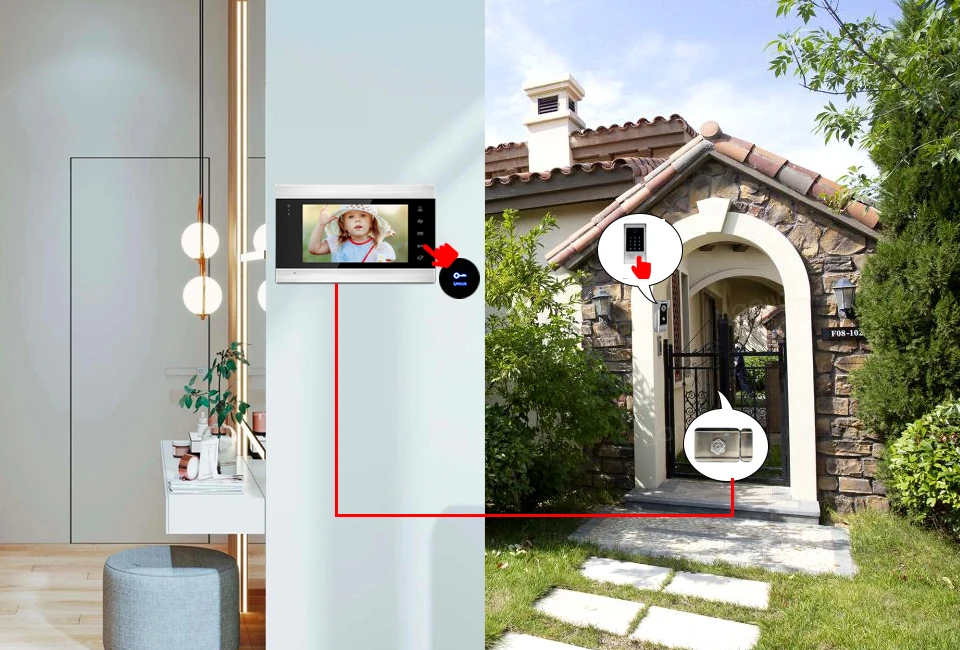

Adjust Lock Time, Compatible With All Electronic Locks (Not Included)
Support To Connect a Delay Function Electronic Lock To This System. With This Function, You Just Need To Press The Unlock Button On Monitor. Support Adjusting The Time Between Lock And Unlock. So, It Makes Your Home More Safety.
Support Electronic Lock, Analog Camera, and PIR (All Not Included, if you need, contact us to buy)
Our 7" Video Door Phone Set Supports Connecting With PIR Detector, Analog Camera, And Electronic Lock. It Can Protect Your Home And Property In All Aspects. Please Notes: PIR Installation Separately Can Be For Alarm Prompt only, Work With a Camera Together Can Alarm And Video Recording.
Dual-way Intercom, Call Transfer Among Monitors
This Item Is Hands-free And Available For Dual-way Communication. It Supports Communication Between Indoor Monitor And Outdoor Camera But Also Supports Communication Between Monitor And Monitor.

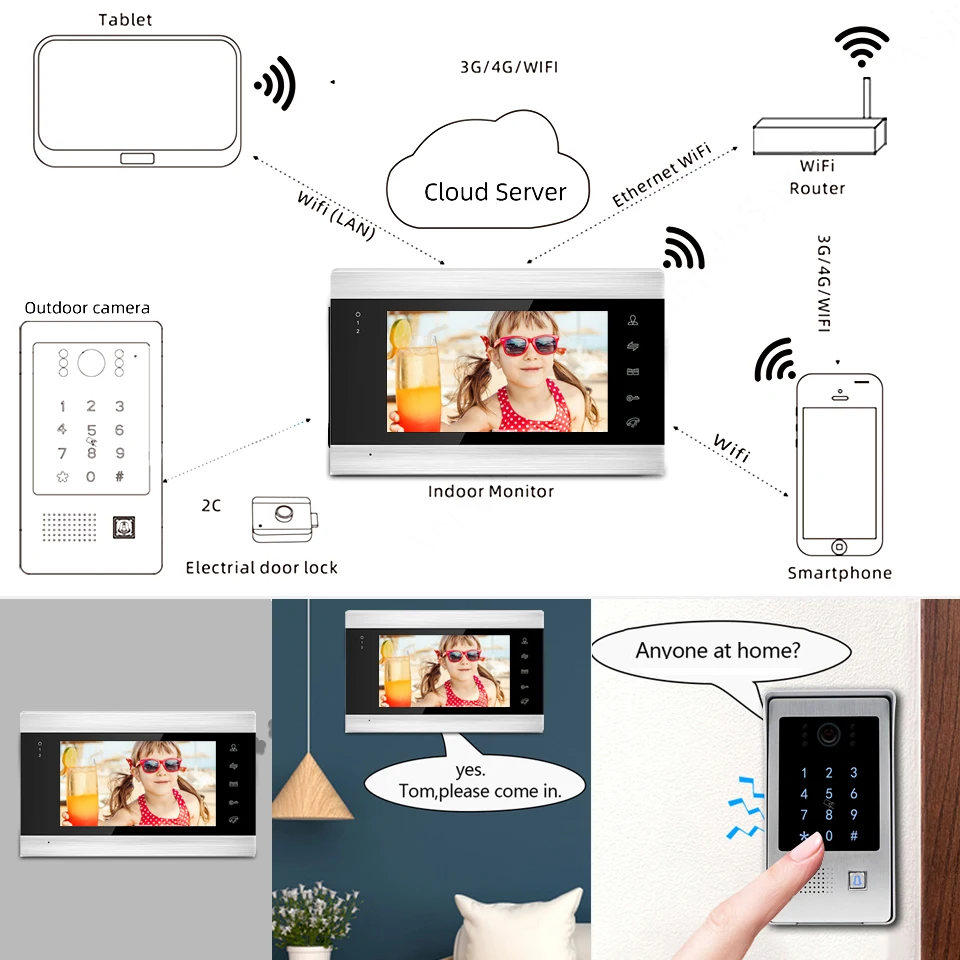

Never Miss a Visitor
This IP video door phone system lets you answer your door by smartphone from anywhere.
Handsfree Dual-way Intercom
Communication between the indoor monitor and the outdoor camera is supported. Let you know easily what the visitor is talking about. When somebody calls outdoors, your monitor and smartphone will ring at the same time.
Package Include
1x Indoor Monitor 1x Doorbell 1x Power Adapter 5x 200mm 4 Pin Connector 2x Guarantee Card 2x English User Manual 1x Outdoor Call Panel 1x 200mm 2 Pin Connector 2x Screw Bag 2x Qualified Certificate
Tips:

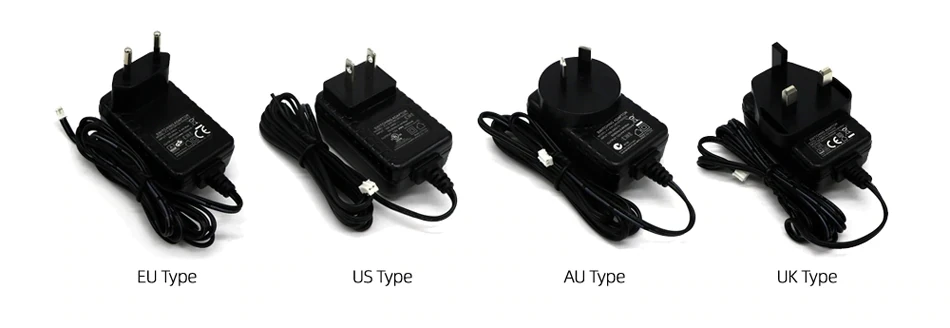

There are 4 types of power adapters, We will send the applicable power adapter according to your country, if you have a special order, please contact us for free.
Installation Method

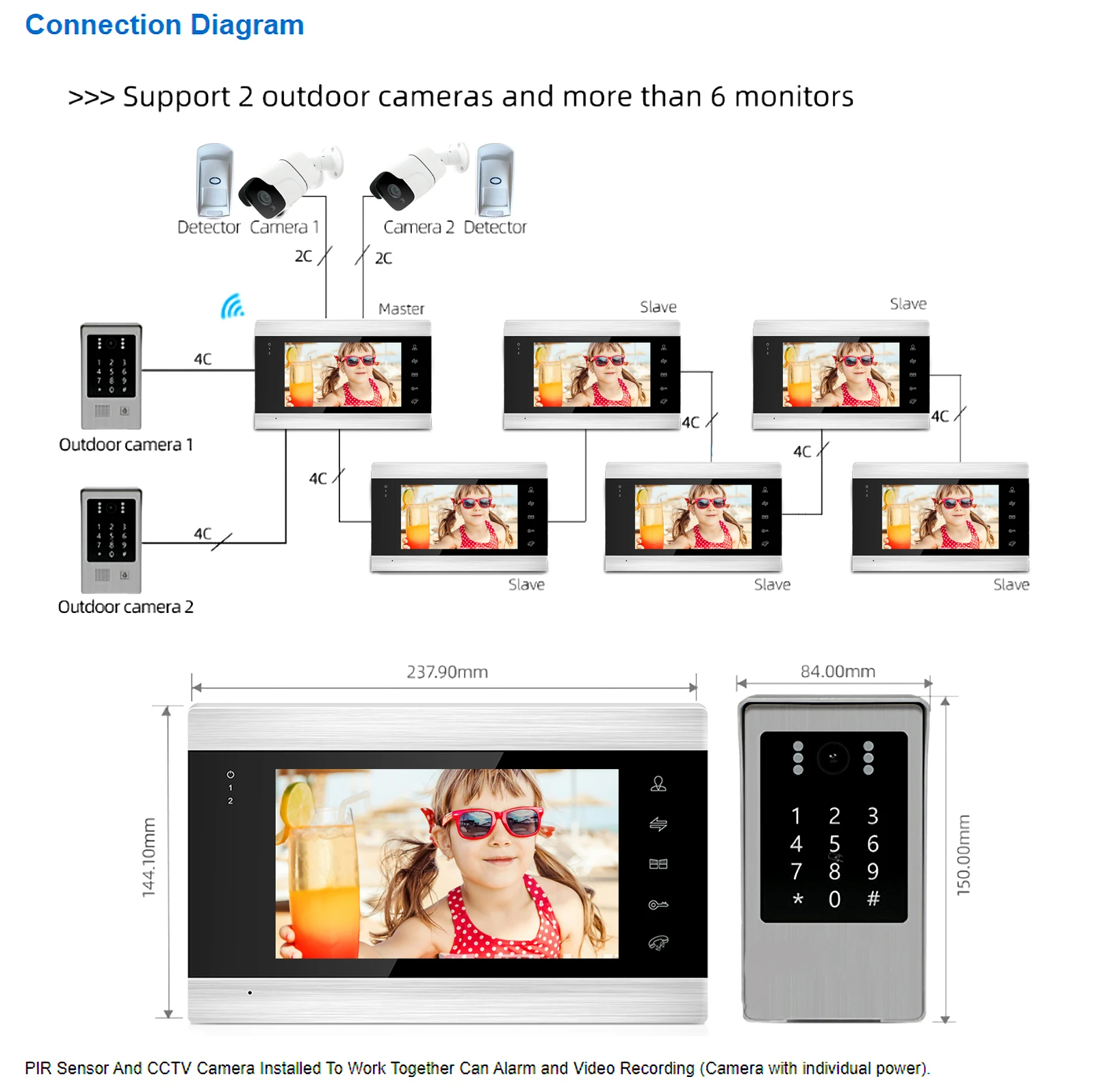

System Connection Wiring Diagram
Maximum support connects with 2 outdoor call panels + analog 2 cameras(or PIR detectors) + 6 monitors in one system. PIR sensor and CCTV camera installed to work together can alarm and video recording (Camera with individual power).
Access Control Security System
Buyer Questions & Answers
Buyer Questions & Answers
Q: Are you a real manufacturer/factory?
A: Yes, our company specializes in producing smart home smart security real manufacturer/factory.
Q: Are you able to provide OEM&ODM service?
A: Yes, we are able to provide OEM&ODM service and to provide professional advices to both product design&marketing and business planning.
Q: How to place an order if I want to buy some product from you?
A: You can place an order directly on our website, or contact us directly for offline purchase (customized and ready to ship products), after you confirm the products you want to buy from us, I will send you a proforma invoice or contract, or you send us a contract.
Q: How to delivery goods to me?
A: We provide delivery by airplane, by train and by ship.
Q: What's your delivery time?
A: Negotiable
Q: What terms of payment do you offer?
A: Negotiable
Q: Hello, I don't know the unlock code of the device, it's six numbers.111111, 222222, 123456 are not correct, please let me know.
Q:Does anyone know the default pass to open the door using Tuya?
A:Hello, the initial password is 888888.
Q: Can connect to 5G wifi？
A:NO，ONLY 2.4G wifi can be used.
Q：I'm not capable. I don't activate the wifi on the monitor
A: Hello, in this case, the wifi of the screen is not successfully connected, you need to contact the seller or technical staff ,Add whatsapp:+8615913473606 it is best to shoot a video in advance, so that we can quickly tell you the solution
Q：What kind of cable to use to connect the screen to the phone?
A:Hello, you can use the cable from our store, https://anjielo.myshopify.com/admin/products/6064868556959
which is better, or CAT5 OR CAT6, but there will be requirements for length and quality, please contact the seller for details

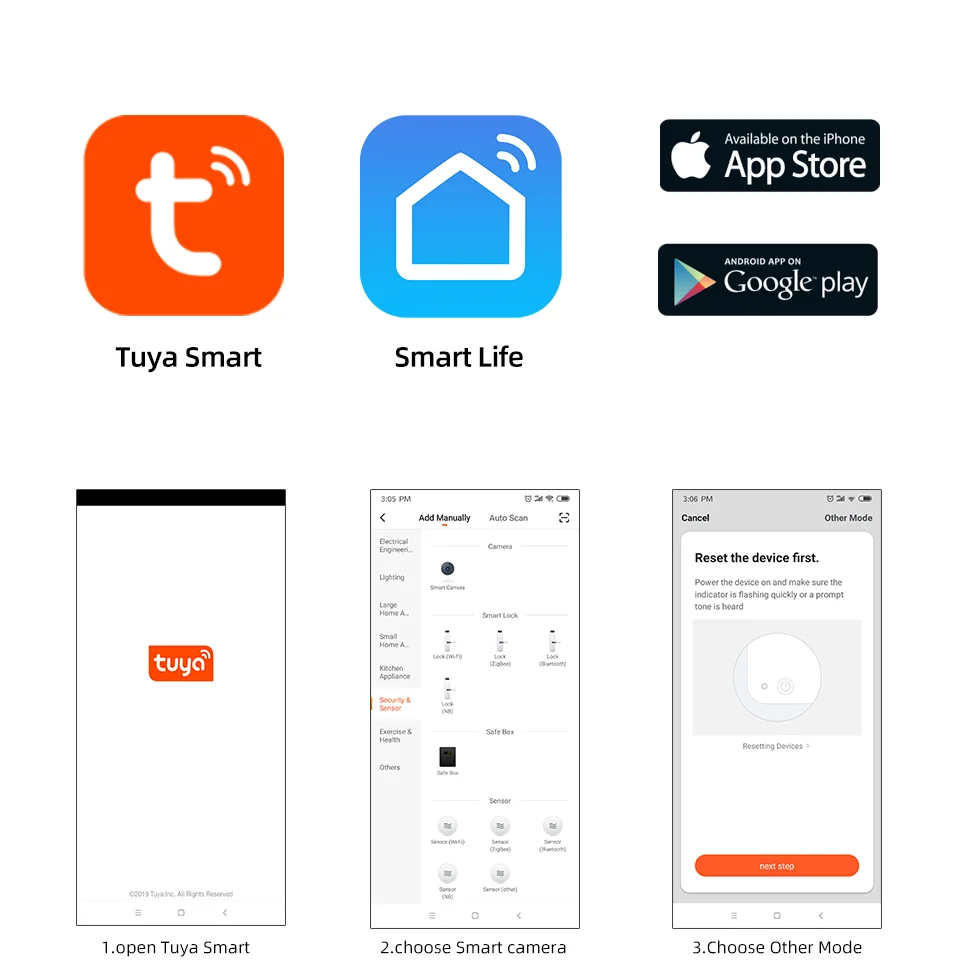

Q:How to connect to Tuya?
Product Support ：YouTube:www.youtube.com/@anjielosmart
TikTok: Search "Anjielo Smart" on TikTok Email : yuyunzhu@anjielo.com; sales@anjielo.com，Or add whatsapp:+8617336198736
Q:During the process of adding a device, it shows that there is no permission to add a device, what should I do?
A: Hello, first click on the network on the screen, select the DEFAULT option, restart the screen to add the device again, if you still cannot add the device, please contact the seller
Q:The doorbell keeps ringing
A:If the outdoor station does not have a card swipe function, the outdoor station needs to be set to “don’t support access card” mode;If the outdoor station supports card swiping, the outdoor station needs to be set to “support card “ mode.
Q:When someone presses the doorbell, the device is working but the doorbell does not ring.
A:Please set the screen to home screen mode, the doorbell will ring when you press the doorbell；If the doorbell is set to message mode, it will not ring when you press the doorbell.
Q:The distance between my doorbell and the screen is a bit far, and the image is blurry. What should I do?
A:If the distance between the screen and the doorbell exceeds 30 meters, the doorbell needs to be powered separately.
Q:I purchased two screens, how do I install them?
A:Set the screen connected to the doorbell as the main screen, set the digital ID to 1, connect the next screen using the out port, connect the second screen to the in port, and then change the digital ID to 2
Q:My video is blurry, black and white, or even no image. What should I do?
A:Please set the settings to PAL 1080 and automatic, or you can adjust it on the back of the doorbell https://www.youtube.com/watch?v=OY1BSGgwSkc
Q:How do I add my fingerprint and password?
A:Please refer to this video https://www.youtube.com/watch?v=8Adt1uQd53Q,
Q:What should I do if my device suddenly cannot connect to the Internet?
A:Power off and restart the device, or update the system.
Q:My video intercom has been working fine for two weeks, but suddenly I can't hear anyone else's voice coming through the doorbell. What's the reason?
A:Please check the line settings to see if the audio cable is dropped or has poor contact or falls off. You can also plug it into door2
Q:My lock is connected to the doorbell, but it won't open the door. What's going on?
A:Please check if there is any error in the wiring. If it cannot be unlocked when connected to the 2PIN port, please connect to the 3PIN port to power the lock. At the same time, you also need to pay attention to distinguish between NO and NC.
Q:I bought 64218+61010, connected it to the power supply, and found that the LED indicator on the screen did not light up. What is the reason?
A:Please note that if you buy 64218 or 64202, there is a separate 2PIN line. We pack them separately and mark them before delivery. You cannot use the doorbell's 2PIN line to connect to the screen's power supply because their positive and negative poles are opposite. The correct connection should be the red line close to the LED indicator. If the connection is correct and it still doesn't light up, it may be a problem with the motherboard.
Q:Does the smart central control panel support Bluetooth connection?
A;Yes, but the Bluetooth function is different.
Receive function: (can connect to mobile phone, can not connect to Bluetooth speaker: Q7)
Transmit function (can connect to Bluetooth speaker, can not connect to mobile phone: 10 inch, 12 inch
Transmitter and receiver: (4 inch, 6 inch (F6), 6.8 inch, 7 inch (F7), 8 inch (F8)
Q:Does the video intercom device support connecting to sliding doors? If so, how can I connect it?
A:Support. Use door bell “COM” and “NO” two wired connect to silding gate opener
Q:Hello, since there are power outages here from time to time, can I use a DC12V battery pack to power the video intercom equipment?
A:The video intercom doorbell is not low power and needs continuous power supply, and video transmission requires a larger current, so it cannot be powered by a battery pack.
