Anjielo wireless image transmission module for long-distance, non-line-of-sight signal transmission covering a distance of 3 to 15 km

Anjielo wireless image transmission module for long-distance, non-line-of-sight signal transmission covering a distance of 3 to 15 km

0 ( 0  Reviews )

Regular price $3,200.00 USD
Regular price Sale price $3,200.00 USD
Sale Sold out
Shipping calculated at checkout.
Model
Quantity



Product Overview

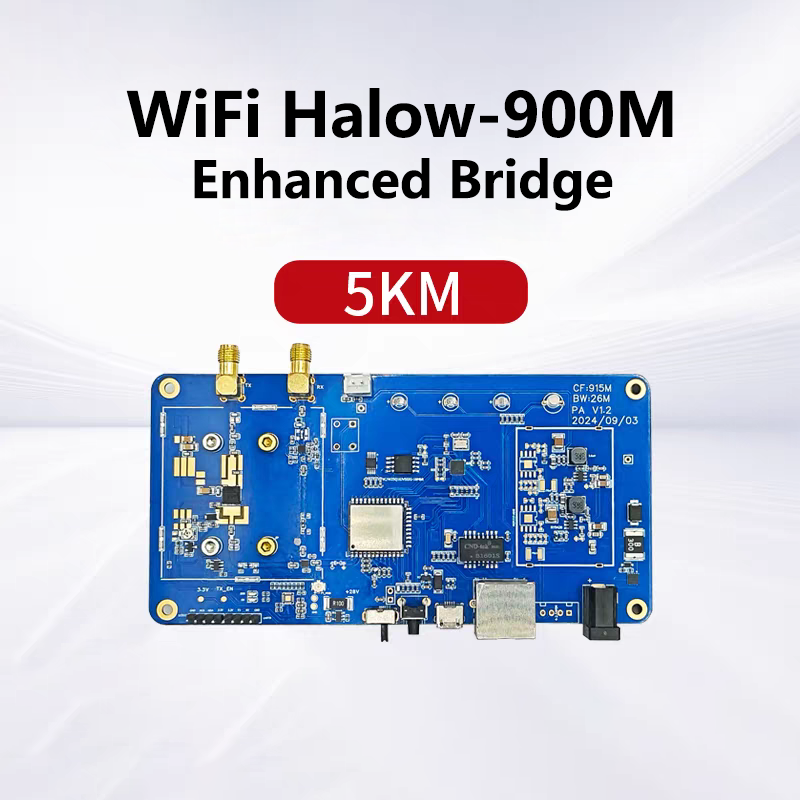

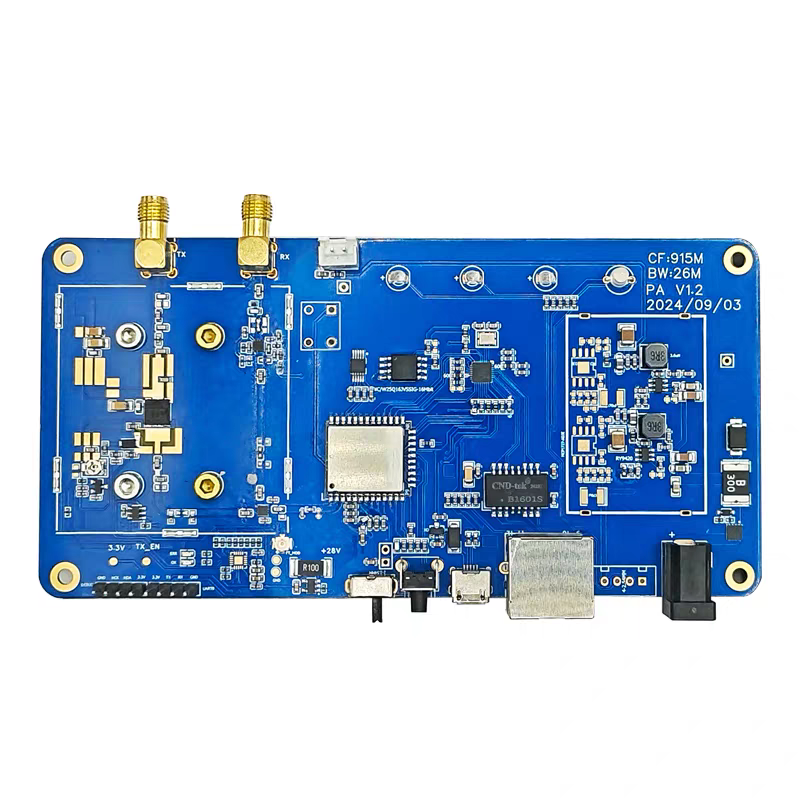

As an optimized Wi-Fi solution for IoT devices, the R900M operates in the 902MHz-928MHz frequency band. With the same transmit power as 2.4GHz/5GHz Wi-Fi, it achieves a transmission distance of 1.2 kilometers. The enhanced bridge version increases power to 33dBm/2W, achieving a distance of up to 5 kilometers in open areas. The enhanced bridge version supports channel bandwidths of 1/2/4/8MHz, providing physical layer symbol rates from 150Kbps to 32.5Mbps, thus supporting applications ranging from low-speed sensors to multiple high-speed surveillance cameras. It supports repeater mode operation to extend coverage. Roaming mode is supported, allowing STAs to roam between different APs. The module supports multicast mode, suitable for data multicast scenarios.

The UAV wireless image transmission module is a high-performance radio frequency bridge designed for long-distance, non-line-of-sight signal transmission, covering a distance of 3 to 150 kilometers. The module utilizes low-frequency radio frequency technology to ensure stable and reliable image transmission even in challenging environments. It is ideally suited for professional drone applications, supporting seamless data transmission for tasks such as aerial surveillance, mapping and remote monitoring, providing a reliable solution for long-distance operations.

HW9066 UAV image transmission module ODFM technology, SDR technology, transmission distance: 10-150KM, transmission rate: 30Mbps, transmission frequency band: 800MHZ-1.4G-2.4G.

1.Technical Background :

HW9066 Figure CNC integrated wireless transmission module, is based on TDD-LTE 4G mobile communication standards and research and development, does not rely on mobile operator base stations, for outdoor wireless network long-distance transmission and P2P wireless bridge. The product uses OFDM key technology, supports a variety of bandwidth allocation, flat system architecture design, is based on software radio technology (SDR) and developed a set of long-distance wireless data transmission products.

HW9066 Figure CNC integrated wireless transmission module supports the maximum transmission rate of 30Mbps, the maximum theoretical transmission distance of 150km, covering the frequency band between 700M and 2.6G, and can also achieve five different bandwidths of 1.4M, 3M, 5M, 10M, 20M, a variety of bit rates, dynamic adjustable, Especially suitable for security monitoring, smart city, robot, special communication, intelligent manufacturing, intelligent agriculture, disaster reduction, unmanned ship and other intelligent.

2. Technical specifications:



Items

Function

Description

Radio Frequency

frequency point

24015-2484MHz;14279-14478MHz:8060-8259 MHz

transmitted powe

2.4G/1.4G/800M 20-25dBm±2dBm

sensitivity

2.4G:20MHz/5Mbps-97dBm;10MHz/10Mbps-91dBm

1.4G:10MHz/5Mbps -96dBm;10MHz/10Mbps -91dBm

800M:10MHz/5Mbps-96dBm;10MHz/10Mbps-91dBm

Interface

ethernet port

RJ45*3

serial port

TTL*2

Power source

Power input

DC12V 1.0

Power Output

DC12V 0.7A

Machine Power

Maximum peak power

3W

Transmission mode

antenna

Double sending and double receiving(1.5dbi\5dbi\7dbi;0mnidirectional,
directional optional)

Channel bandwidth

2.4GHz

1.4MHz/3MHz/5MHz/10MHz/20MHz

800MHz

1.4MHz/3MHz/5MHz/10MHz/20MHz

1.4GHz

1.4MHz/3MHz/5MHz/10MHz/20MHz

Propert


rate

Rate configurable/supports a maximum of 30Mbps

distance

800m-15km,the longest measured transmission of the drone 17km/1080P image

Delay

Data transmission delay

Transmission delay <=100ms

Output delay at power-on

<15s Power on-Chain construction complete/

Command interface

Web

Supports web page configuration management

Data interface



Ethernet port,TTL serial port,USB port

Operation Temperture

Storage Temperature

-40℃~+85℃

Working Temperature

-20℃~+75℃

Humidity



5%~95%



3. Fault and solution:



Fault symptom

Fault cause

Troubleshooting method

All lights are off
after power is turned
on

1,the power supply does not meet the requirements.
2,the power supply is reversed.
3.The power indicator is faulty

1,use DC12V 1A power supply
2,adjust the positive and negative poles of the power supply(the equipment has anti-reverse connection function)
3.Replace the display unit

The indicator is off
after the network
device is inserted

1.The power supply is faulty
2.The network cable is faulty
3.The cable connector is loose

1.Remove the power failure
2.Replace the network cable
3.Reinstall the network cable connector

The Web management
page cannot be
displayed

1.The IP addresses of the PC and module are on
different network segments
2.The IP address of the PC is the same as that of
the  module
3.Forget the module IP address

1.Set the IP addresses of the PC and module to the same network segment.
2.Adjust the IP address of the PC and select a unique IP address.
3.Hold down the Reset button on the module and set the IP address of the PC to  192.168.1.X
4.Check  the  antenna  installation

The A-Node fails to
bridge the central
node(the LINK
indicator is off).

1.The distance is too far
2.Frequency bands are inconsistent
3.The keys are inconsistent

1.Shorten(distance between central node and access node)
2.Select a frequency band consistent with the central node
3.Fill in the key consistent with the central node.


The connection between
the central node and
A-Node is uns table

1,the signal is weak
2,antenna installation work is not stable
3,same frequency interference

1.Replace the high-gain antenna
2,select large transmission power equipment
3.Adjust the antenna direction
4.Sturdy  antenna
5.Change  the  frequency band


The delay is larger
when the data volume
is large


1.The bandwidth of the wireless link is insufficient
2.Channel interference


1.Add a pair of equipment,expand the belt wide
2.Replace the camera with a high compression ratio,such as H.265 encoding
3.Replace the channel

4. Application scenario:
