This product is suitable for villas, offices, duplex buildings and hotels. 2.4G transmission frequency, barrier-free communication distance is about 200 meters;(horizontal straight line distance of the open space)
The transmission distance of 2.4G wireless signals will be affected by many factors, such as climatic conditions, geographic environment, electromagnetic environment, obstacles and metal materials.
Therefore, please avoid obstacles as much as possible and avoid using it on multiple walls. The signal strength will vary in different environments.
(1) 2.4G transmission frequency, barrier-free communication distance is about 200 meters;
(2) Adopting micro-processing technology, fully automatic wireless control function, excellent performance and high reliability;

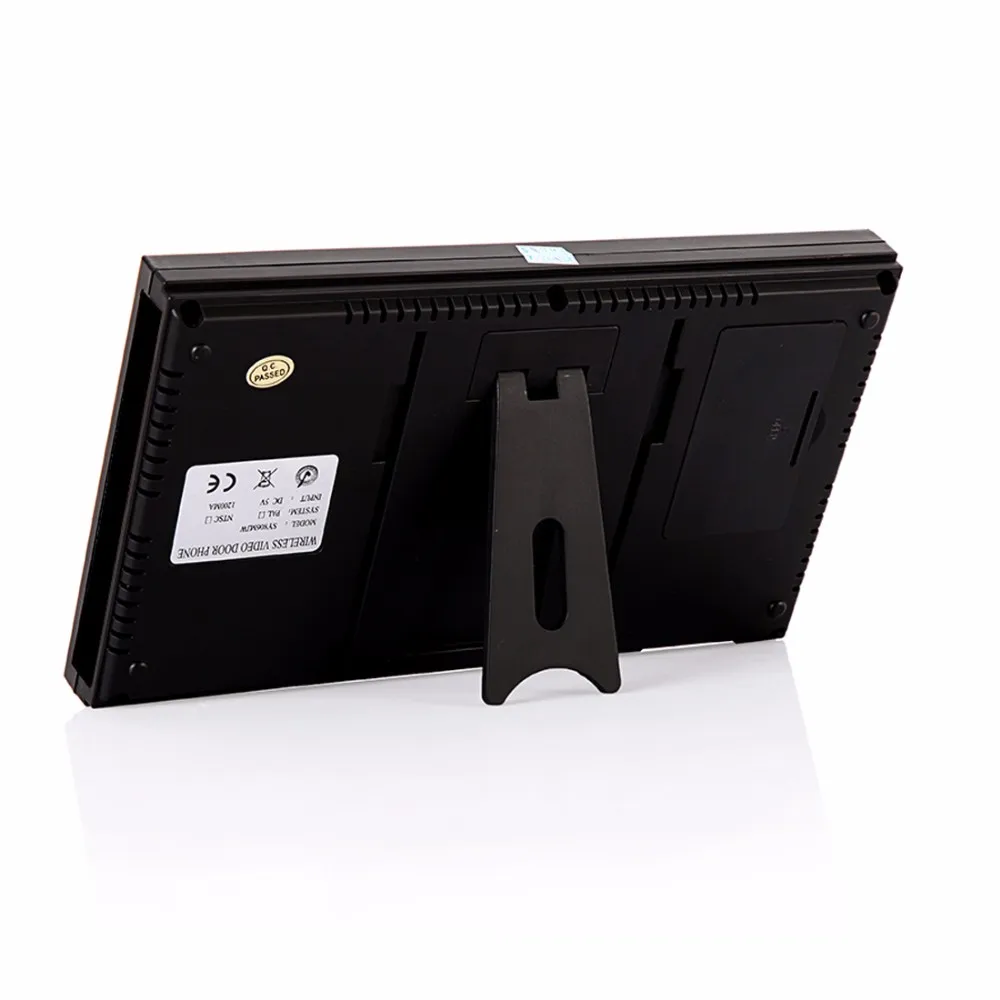

(3) Indoor unit uses TFT 7-inch digital true color display;
4) Outdoor unit adopts CMOS 300,000 pixel camera;
(5) Clear night vision function, can realize 24 hours of monitoring, call, intercom, unlock and other wireless functions;
(6) An outdoor unit can call 3 indoor units; it can be configured with a combination of 1V1 ... V3; 2V1 ... V3. Two or more extensions can call and talk between extensions.
(7) The indoor unit automatically takes pictures through the outdoor unit, and the indoor unit can also take pictures actively and store them automatically;
(8) The indoor unit has functions of clock, photo, missed call, ringtone, and setting menu;
(9) The indoor unit has clock adjustment, photo storage browsing and deletion, ringtone selection, 6 languages (English, German, Spanish, French, Russian) selection, missed visits inquiry and deletion. In the setting menu, you can set the screen backlight time, ring time, unlock time, code matching and other operation functions.
(10) Mini USB port for indoor unit, lithium ion rechargeable battery, battery standby time is about 120 hours;
(11) Intercom can be called between the indoor unit and the indoor unit; (more than 2 indoor units are required),by press "photograph" button can choose call indoor 1 or 2 or 3.
(12) Outdoor unit with rain cover, super waterproof, unlock function.
(13) The product adopts touch technology (there is a beep sound when touch operation), which is beautiful, practical and high sensitivity; (14) The outdoor unit has two power supply operation modes: power supply or lithium battery (the lithium battery can work continuously for more than 2 months in standby mode)
(1) Time setting: Press unlock icon on the panel to enter the menu, select the time setting adjustment interface, and freely adjust the time by pressing the up, down, left and right keys on the left side of the fuselage. Press the monitor key to exit the time adjustment screen.
(2) Intercom volume setting In call mode, press left and right buttons to adjust call volume.
(3) Ringtone and ring volume settings: Enter the menu, select the ringtone item, press the up and down keys to select the ringtone, and press unlock icon on the panel to adjust the ringtone volume.
(4) Screen brightness setting: When the indoor unit is on, press the left and right buttons to adjust the screen brightness.
(5) Electric lock selection and connection method: Electric lock is divided into power-off unlock type and power-on unlock type. Users need to select the power source of the electric lock according to the power of the electric lock, set the unlock time and the method of connecting the electric lock according to the electric lock parameters Description of unlock interface: This machine outputs two kinds of digital unlock signals, normally open and normally closed. The two electric lock connections are as follows:
(6) Pairing code:
1 VS 1 pair step, Enter the setup menu, select the pairing code item, then press the monitor button on the panel, then press the pairing button on the back of the camera, and release it after hearing a beep. Success will appear on the display.
1 VS 2 pair step: Enter the setting menu in the No. 1 display, select the pairing item and press OK, then select give Code, and enter the code menu on the No. 2 display at the same time, and then select the receiving code.
1 VS 3 pair step: Enter the setting menu in the No. 2 display, select the pairing item and press OK, then select give Code, and enter the code menu on the No. 3 display at the same time, and then select the receiving code.
2 VS 1 pair step: Enter the setting menu in the No. 1 display, select the pairing item and press OK, then select give Code, on the No. 2 camera back press pair button listen two DIDI release ok.
(2) Night vision light
(5) Call key (touch type)
(6) Indicator light
(7) Unlock signal
(8) Power supply
(9) Code button
(10) Lithium battery
(11) Bottom case
Note: Electric lock is not a standard accessory of this product
